Scanstrut ATMOS 12V Integrated Air Inflation/Deflation Station

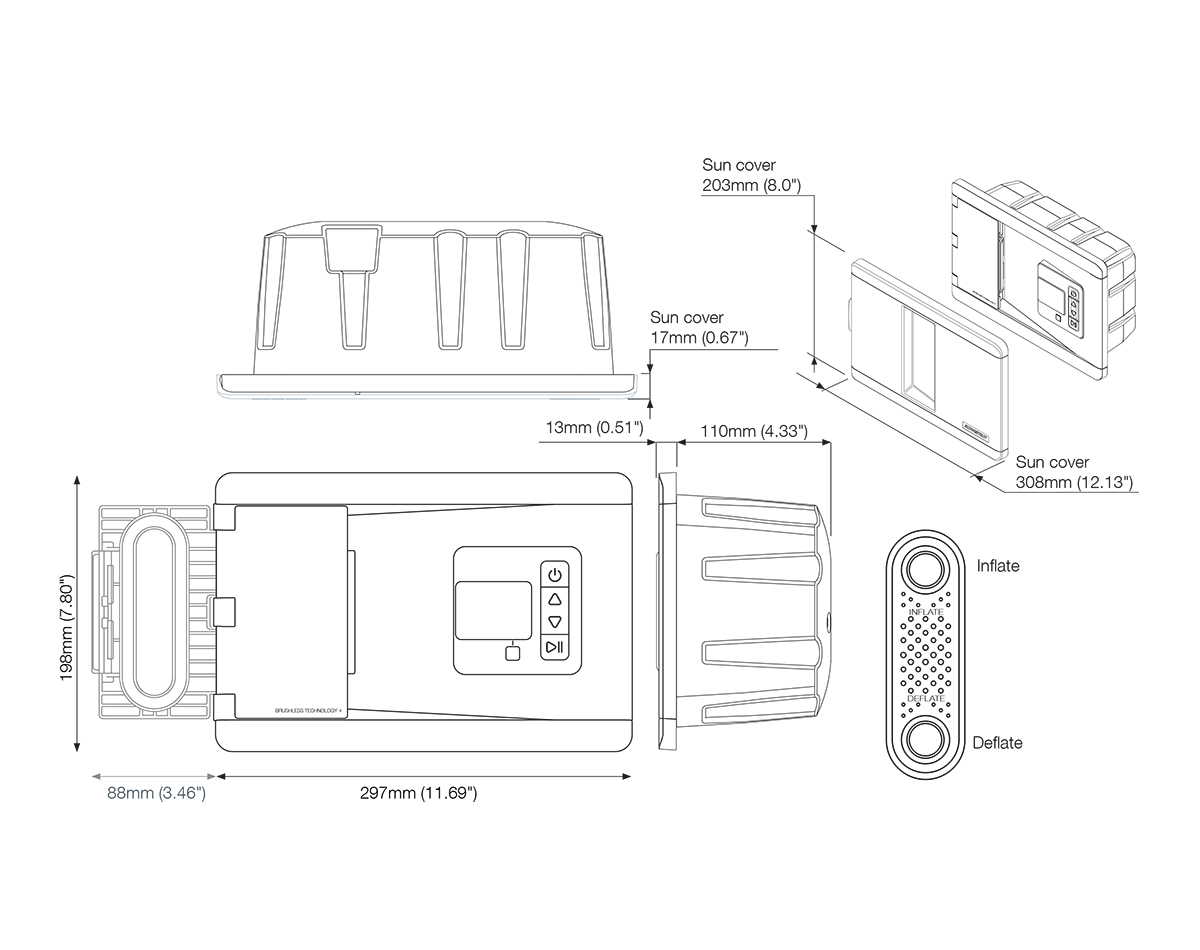

Dimensions

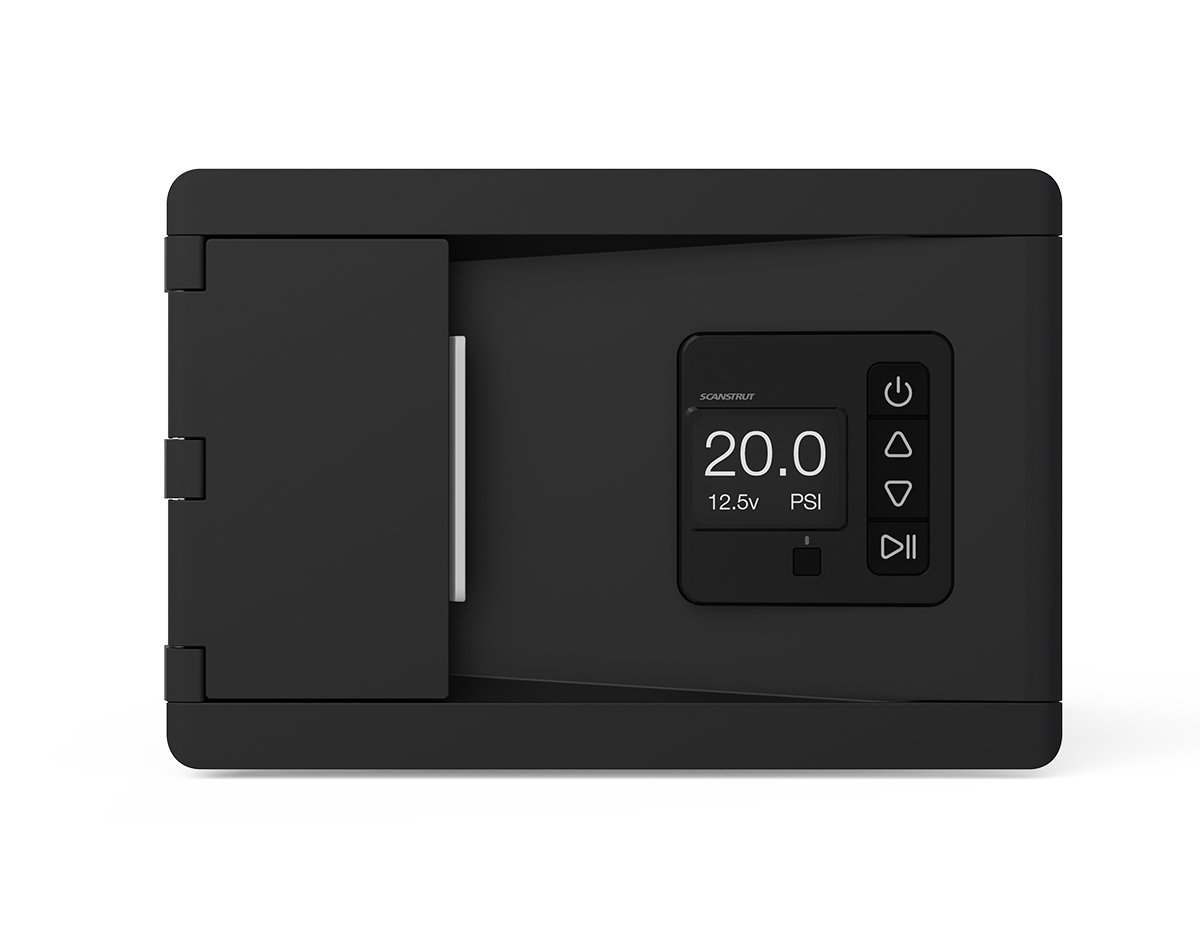

LED display & soft touch buttons

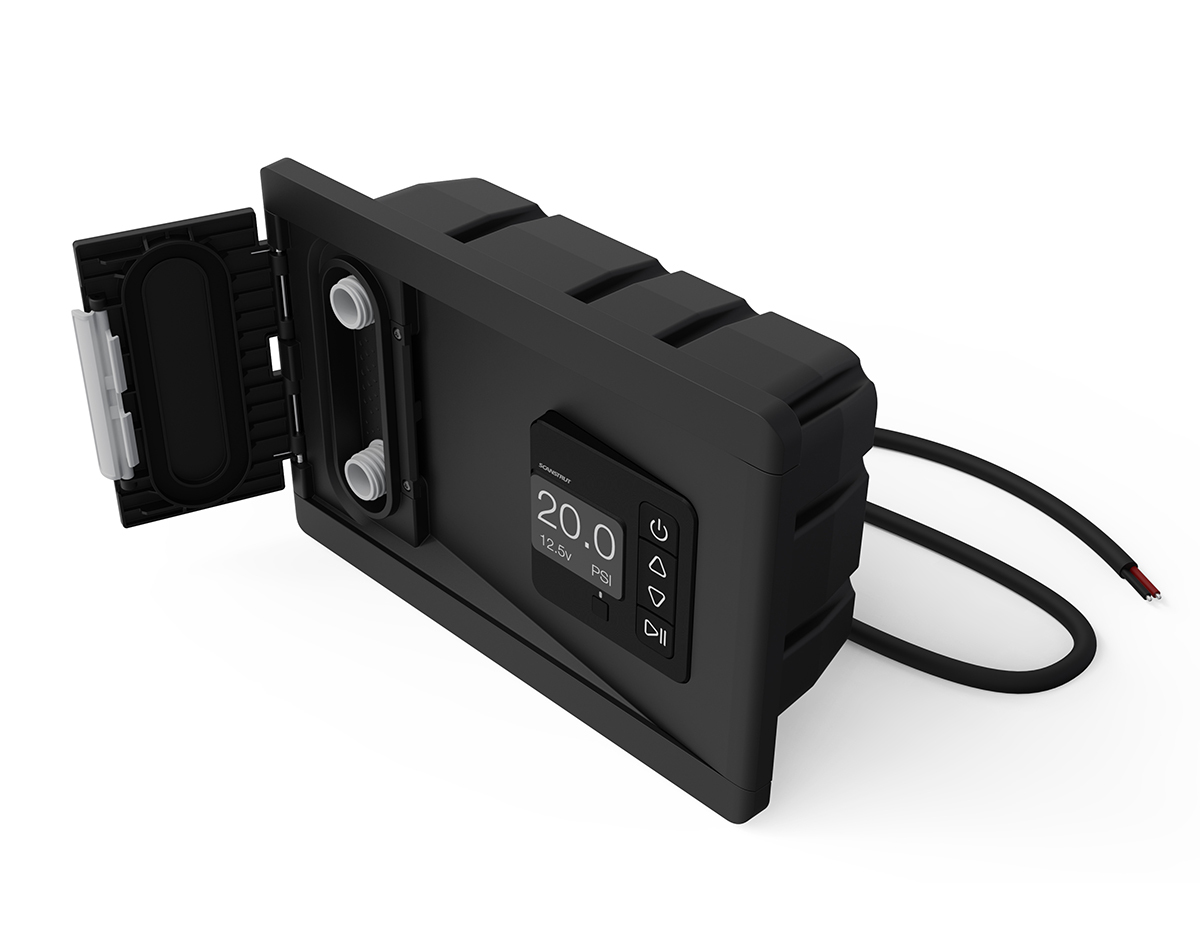

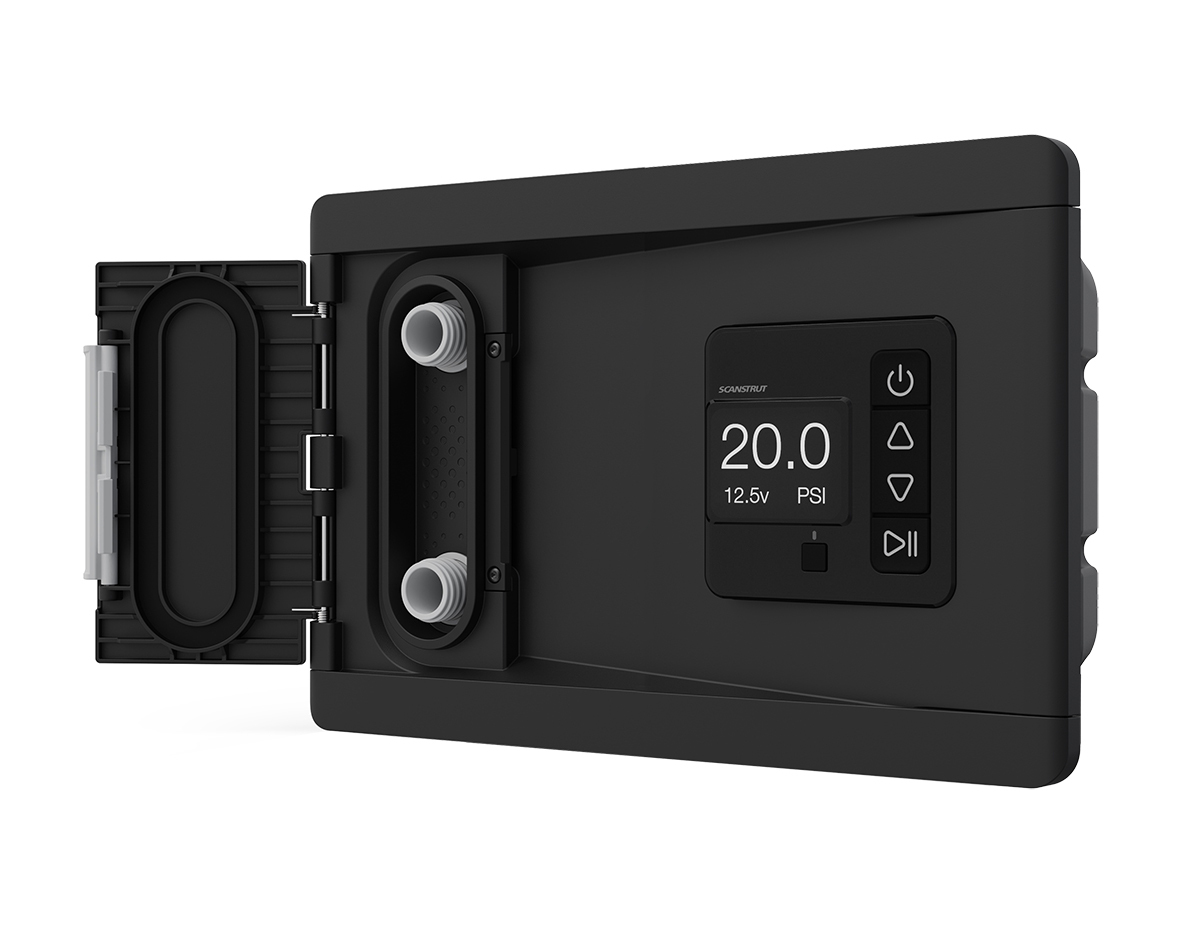

100% waterproof with the door closed

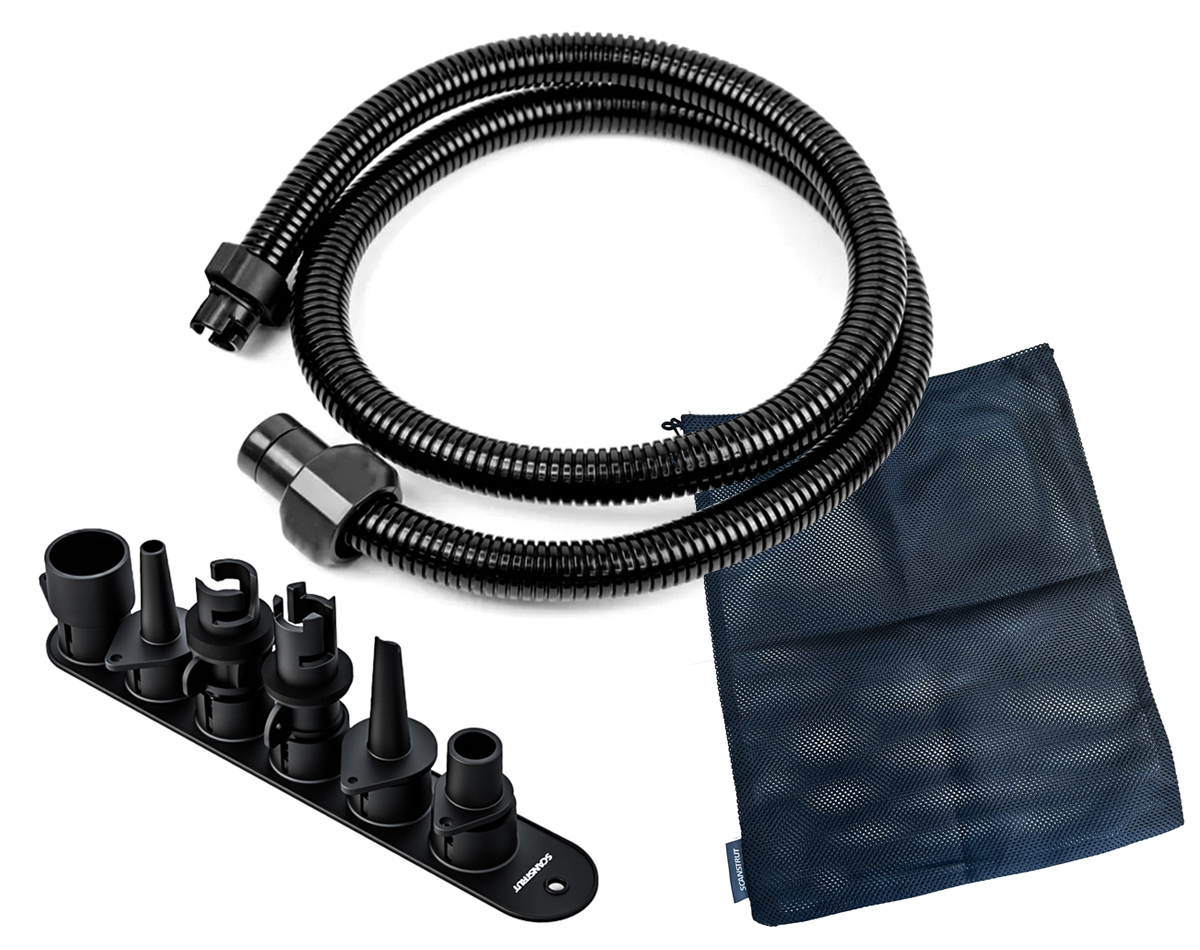

Includes 2.5m hose, 6x connections & storage net bag

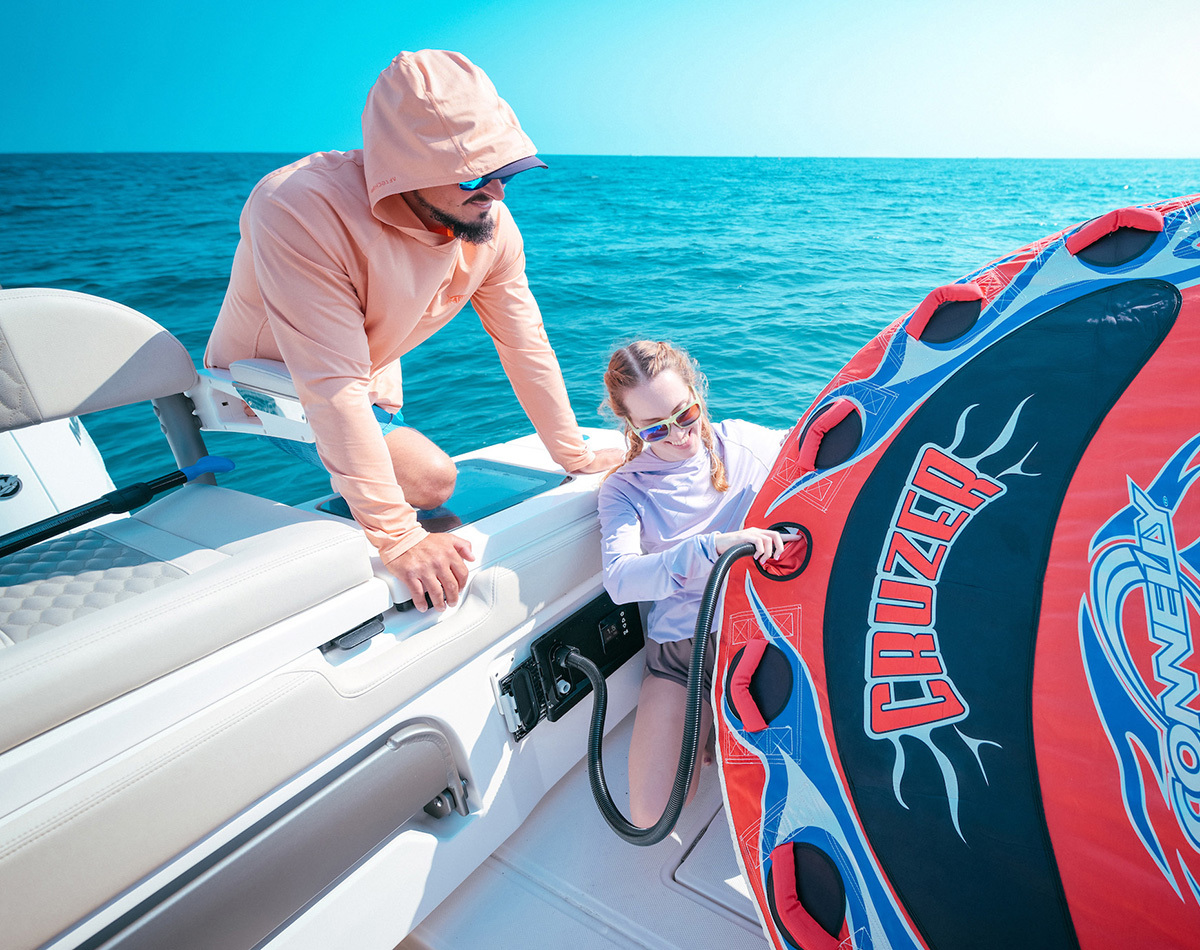

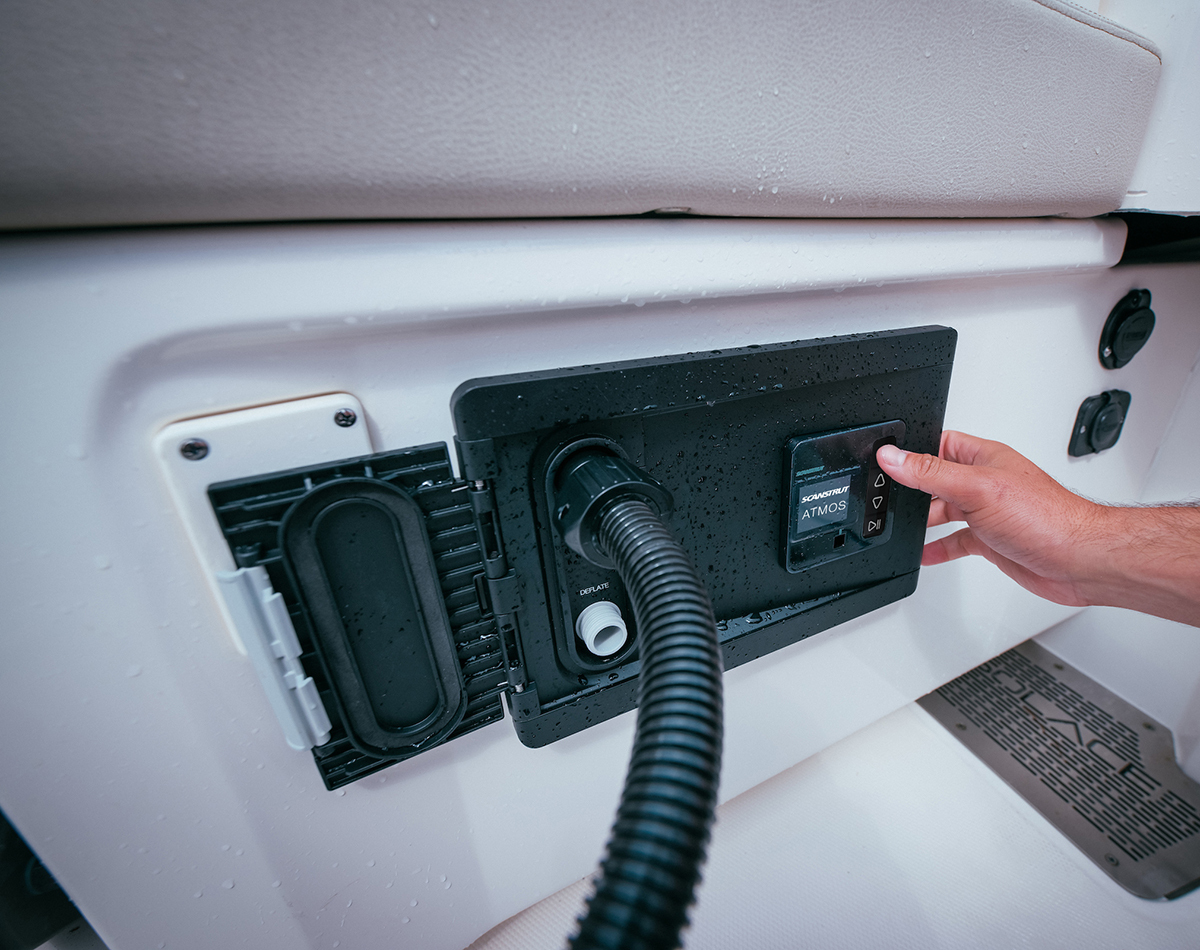

Application Example

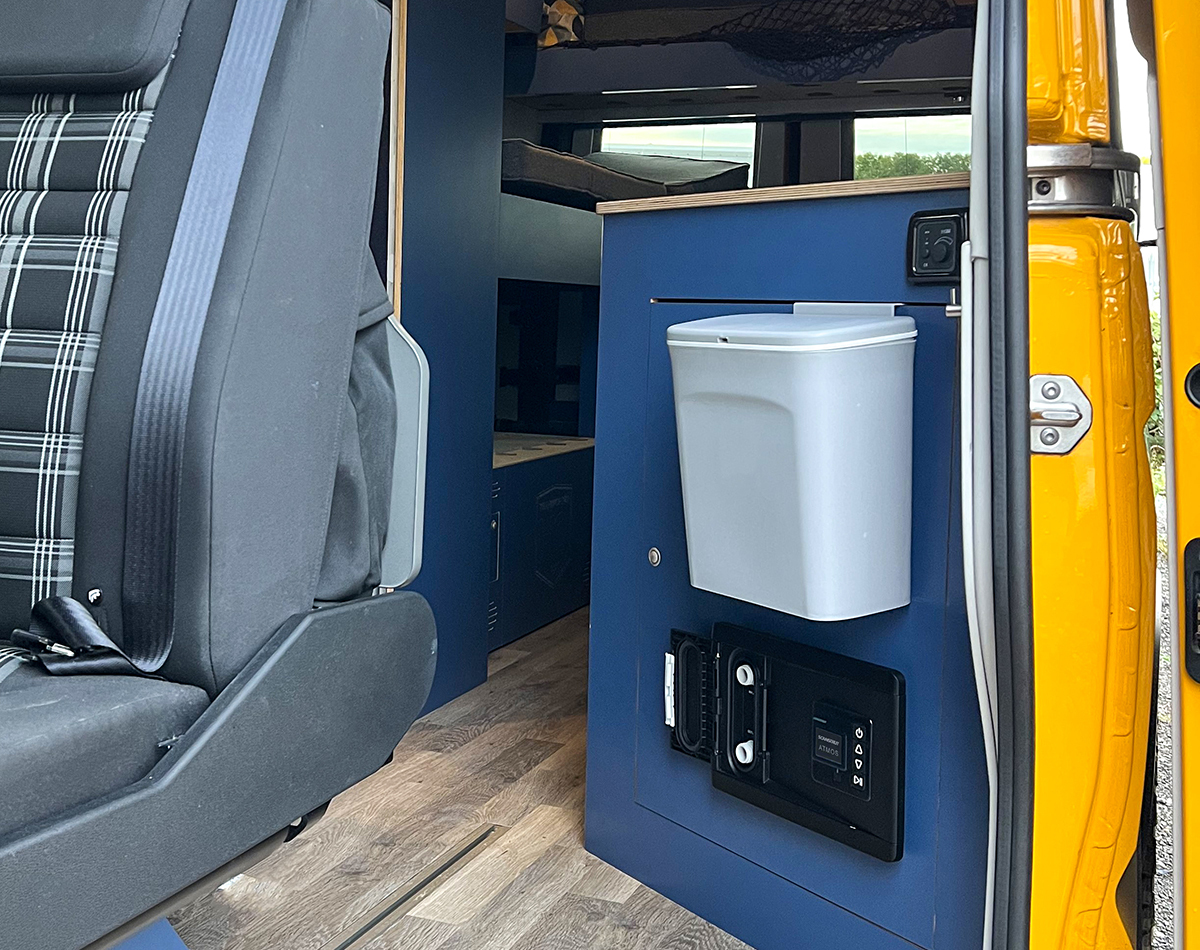

Application Example

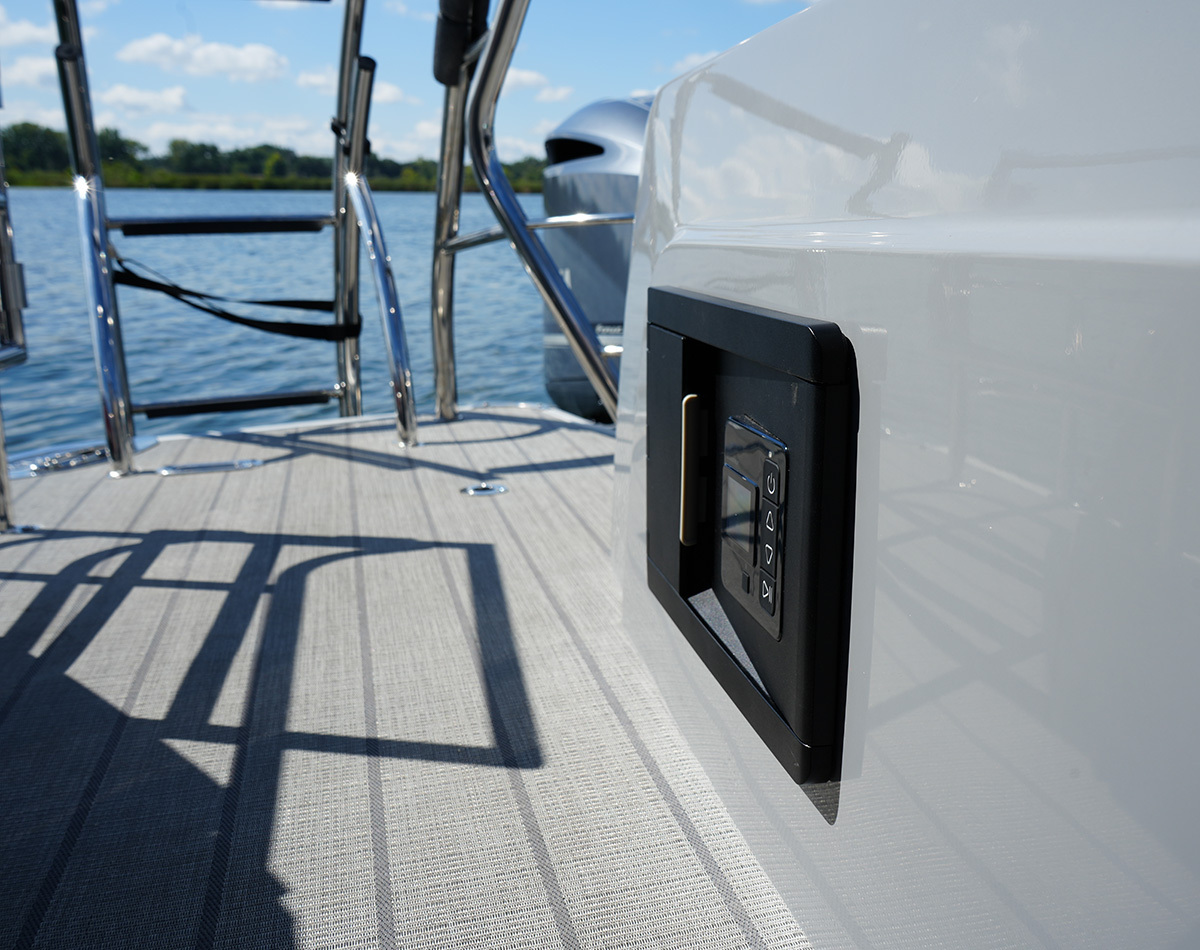

Application Example
Application Example
Say goodbye to gruelling manual pumps and low-quality 12V plug-ins at home or the dock, this beautifully designed, in-built air station is here to maximize quality time on the water.
Pay in 4 interest-free payments of $259.11
ATMOS, by Scanstrut, will revolutionize your family’s boating experience. Say goodbye to gruelling manual pumps and low-quality 12V plug-ins at home or the dock, this beautifully designed, in-built air station is here to maximize quality time on the water.
At the push of a button, ATMOS is ready to inflate your paddleboards, towables and more: simply set the target pressure and let ATMOS do all the hard work.
Featuring next-gen air pump technology to provide fast, effortless inflation (and deflation) for your on-water toys. Compact and shallow, ATMOS fits into almost any panel on board such as seating, consoles, or near the swim platform. Now you have ready-to-go air, right where it’s needed, for even more family fun on the water.
What’s in the Box:
1x ATMOS
1x Cutting template
1x Hose (Length: 2.5m)
6x Connectors (Boston Valve, C7 Valve, H3/HR Valve, Pinch Valves & 805 Valve)
1x Hose/ connectors storage net bag
Product Features:
For more features and installation guides, see the Resources tab.
| Input Voltage: | 12V battery system |
|---|---|
| Max Current Draw: | 12A (140W) |
| Standby Current Draw: | 0.2W max |
| Max Pressure: | 20 PSI / 1.37 BAR |
| Max Volume of Airflow: | 0-1 PSI = 350 LPM/12.3 CFM 1-20 PSI = 70 LPM/2.5 CFM |
| Abient Operating Temp: | -20° to +50°C |
| Two Stage Pump: | Stage 1 = 0-1 PSI Stage 2 = 1.1 - 20 PSI |
| Recommended Run Time: | 25mins |
| Typical Inflation Time: | Average towable (1.5 PSI) = 3mins 10.6ft SUP (20 PSI) = 6-8mins 4x2m platform (5 PSI) = 16mins |
| Typical Deflation Time: | For the above = 1 min |
