Exploded Diagram

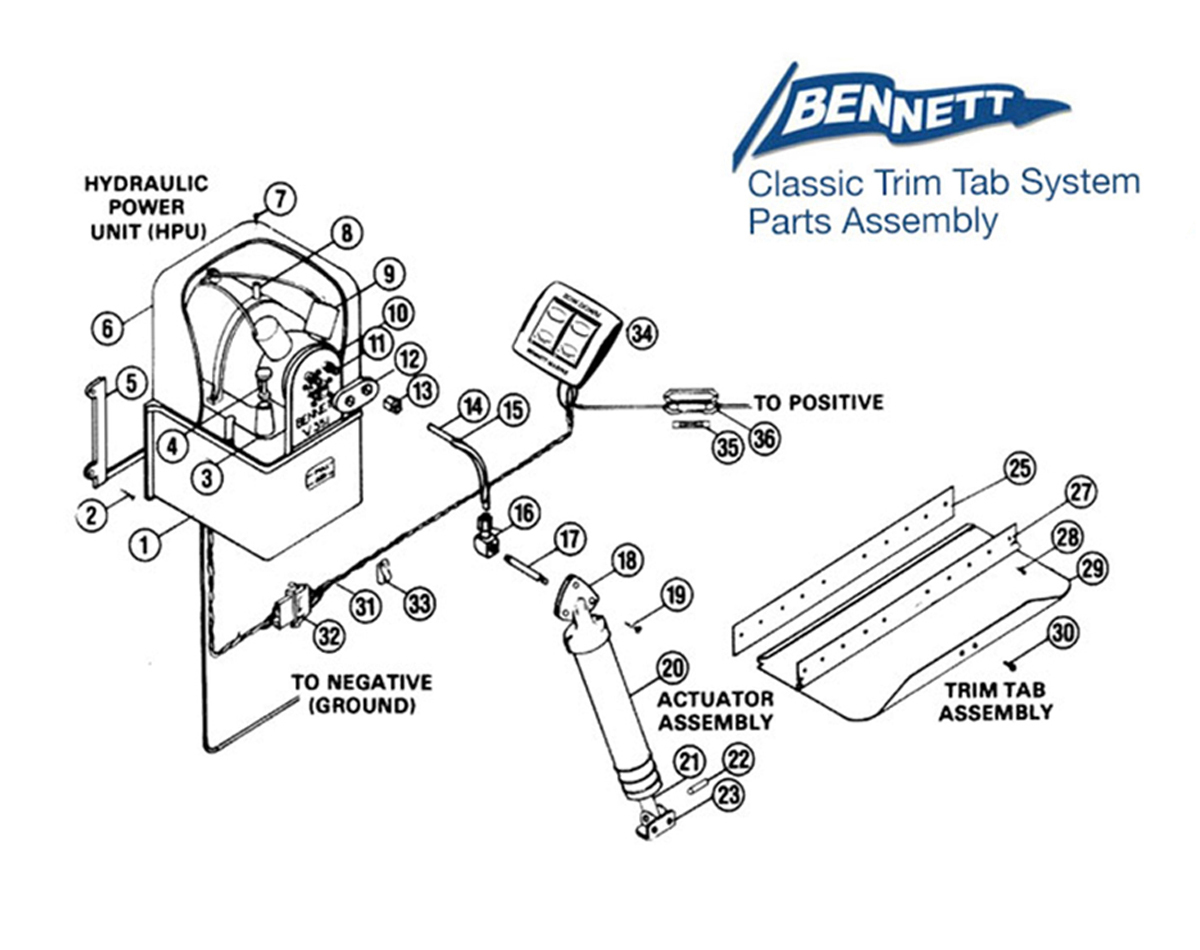

This listing is to help direct you to all the spare parts available online, as per the exploded diagram shown here.
See product overview tab for table with links.
This listing is to help direct you to all the spare parts available online, as per the exploded diagram shown here.
Click on the SKU part numbers below to be directed to the product listing on our website for stock availability, pricing and to order online.
| Item | SKU Part No. | Bennett Code | Description |
|---|---|---|---|
| 1 | 1310054 | VP1139 | Fluid Reservoir |
| 2 | - | H1180 | #10 x 1" Full Threaded Screw (HPU mounting bracket fastener) |
| 3 | - | - | Filler Stack |
| 4 | 1310056 | VP1140 | Filler Plug |
| 5 | 1310057 | H1179 | Mounting Bracket for HPU |
| 6 | 1310058 | VP1138 | Lexan Cover |
| 7 | - | VP1154 | #8 x 3/4" Phil Pan Sheet Metal Screw (Lexan Cover Fastener) |
| 8 | 1310060 | VP1142 | Motor Strap |
| 9 | 1310061 | VP1135G | Solenoid Valve 12V - Green Wire (Starboard) |
| 9 | 1310062 | VP1135R | Solenoid Valve 12V - Red Wire (Port) |
| 9 | 1310165 | VP1135G24V | Solenoid Valve 24V - Green Wire (Starboard) |
| 9 | 1310166 | VP1135R24V | Solenoid Valve 24V - Red Wire (Port) |
| 10 | 1310246 | VP1144 | HPU Face Plate |
| 11 | 1310202 | VP1146 | 1/8 Pipe to 1/4" Tube Connector |
| 12 | - | VP1141 | Hex Retainer |
| 13 | 1310063 | T1127 | Nut with Ferrule |
| 14 | 1310065 | T112520 | Hydraulic Tubing (20’) |
| 15 | 1310066 | H1173 | Tube Bending Clip |
| 16 | 1310067 | H1172 | Female Elbow |
| 17 | - | H1171-(3,5) | 3”, 4” or 5” Pipe Nipples (2” also available) |
| 18 | 1310072 | A1103 | Hydraulic Upper Hinge (Standard & Short) |
| 18 | 1310169 | - | Hydraulic Upper Hinge (Extra Short) |
| 18 | 1310073 | A1103EX | Hydraulic Actuator Upper Hinge - External Line |
| 19 | 1310204 | H1174 | #14 x 1-1/2” Full Threaded Screw |
| 20 | - | A1105 | Hydraulic Cylinder Body |
| 21 | - | A1109 | Piston with O-ring |
| 21 | - | A1117 | Piston with O-ring (Small Actuator) |
| 22 | 1310074 | A1115 | Stainless Steel Lower Hinge Pin |
| 23 | 1310075 | A1113 | Actuator Lower Hinge (Clear) |
| 25 | - | various | Backing Plate |
| 27 | - | various | Hinge Plate |
| 28 | 1310201 | EH1071 | #10 x 1-1/4" Full Thread Screw (Trim Tab to Transom Fastener) |
| 29 | - | various | Trim Tab Only |
| 30 | 1310205 | H1175 | 1/4-20 x 3/4" Machine Screw (Lower Hinge Fastener) |
| 31 | 1310077 | WH100022 | Standard 22’ Wire Harness |
| 32 | - | VP1143 | Quick-Disconnect Plug |
| 33 | - | H1177 | Nylon Hangers |
| 34 | 1310101 | ES2000 | Euro-style Rocker Switch |
| 35 | - | H1176 | 20 Amp Fuse |
| 36 | 1310080 | H1178 | Fuse Holder |
