Hella Apelo A2 Aluminium Underwater Light RGB Colour Change LED with Charcoal Lens

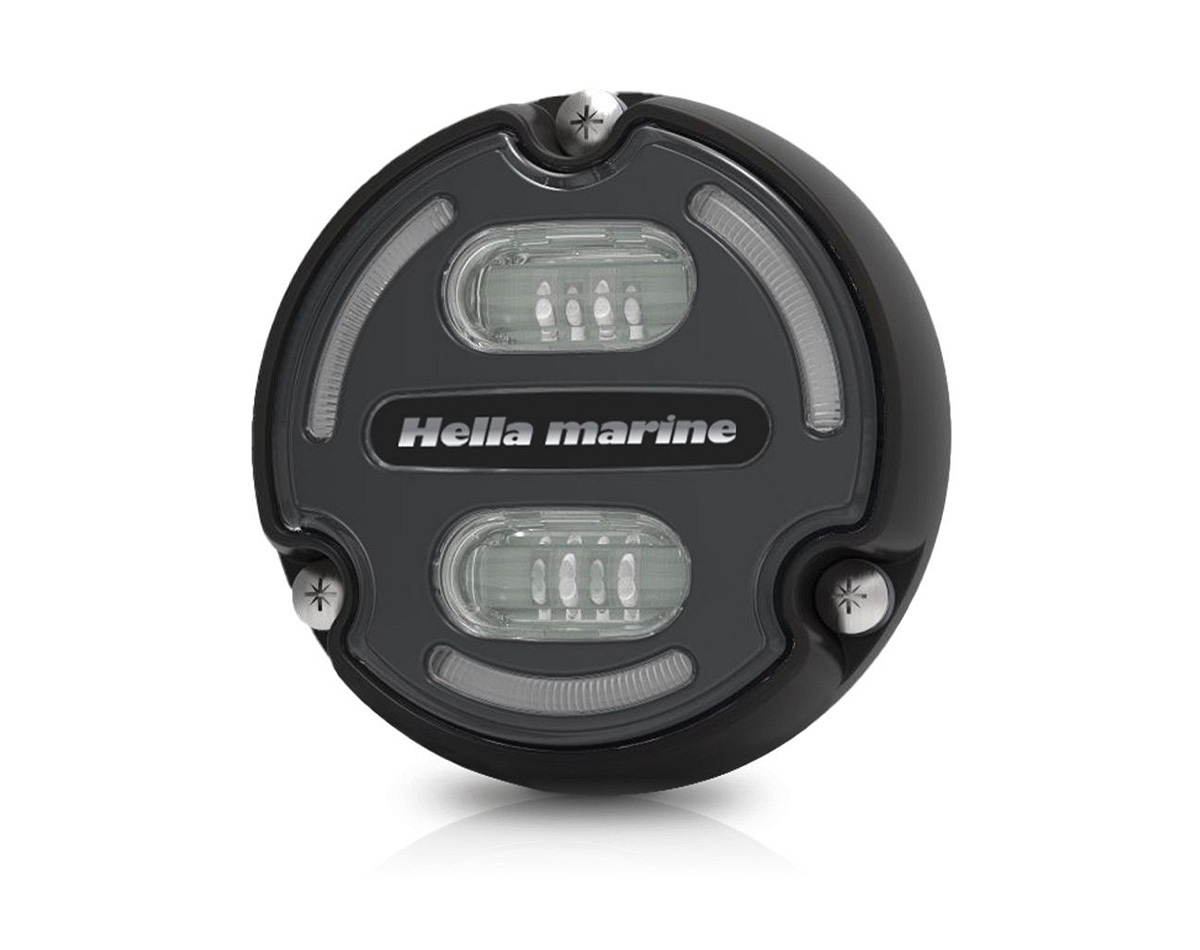

A2 Aluminium UW light with Charcoal Lens - Inactive

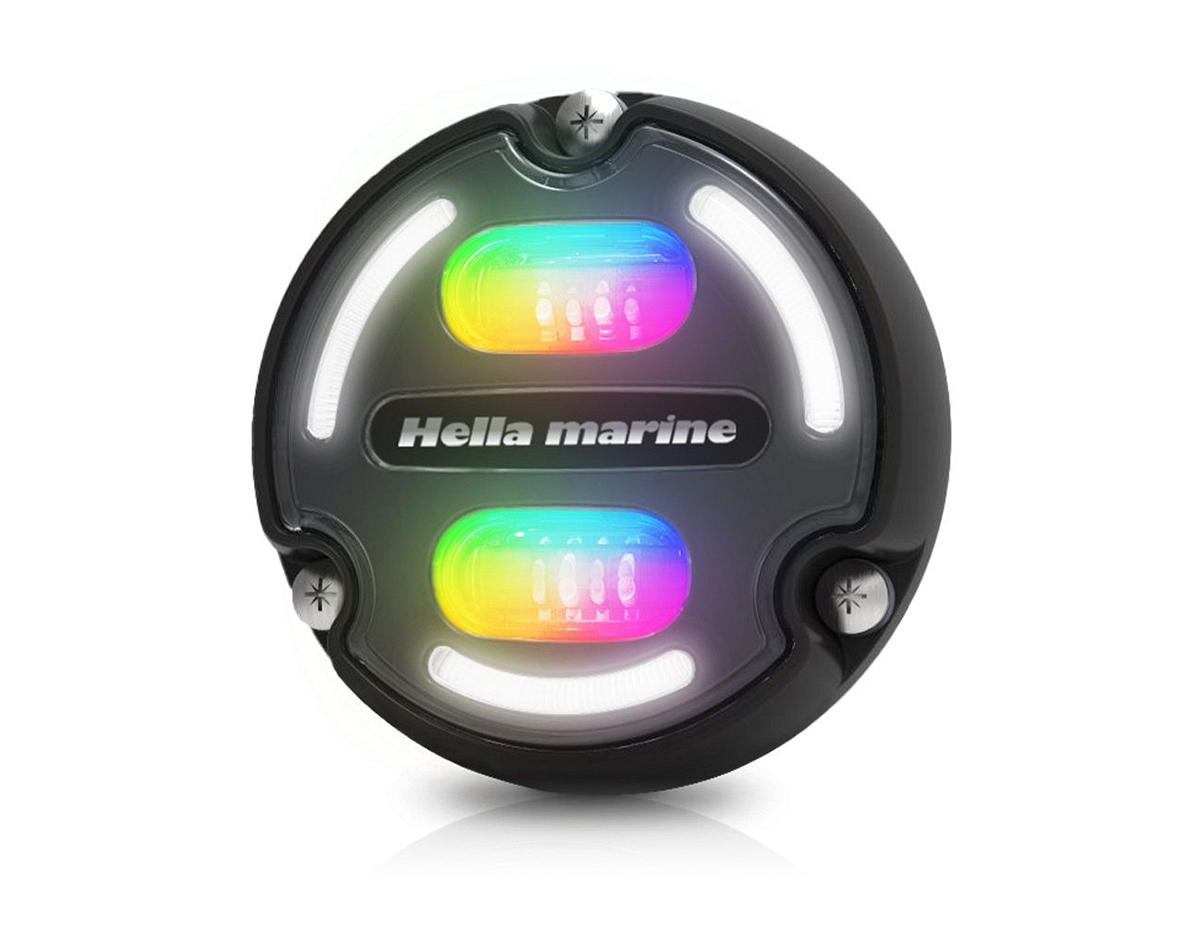

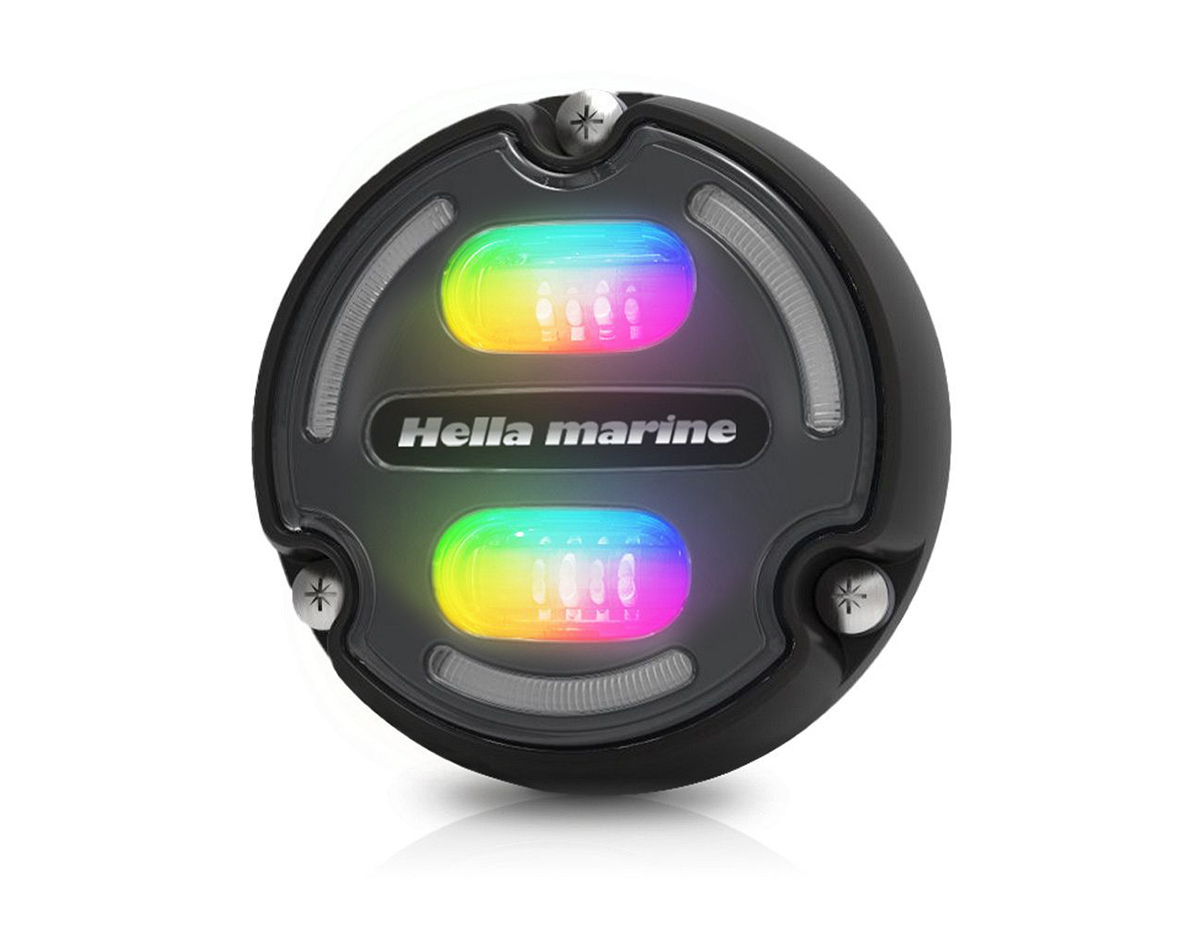

A2 Aluminium UW light with Charcoal Lens - RGB colour change

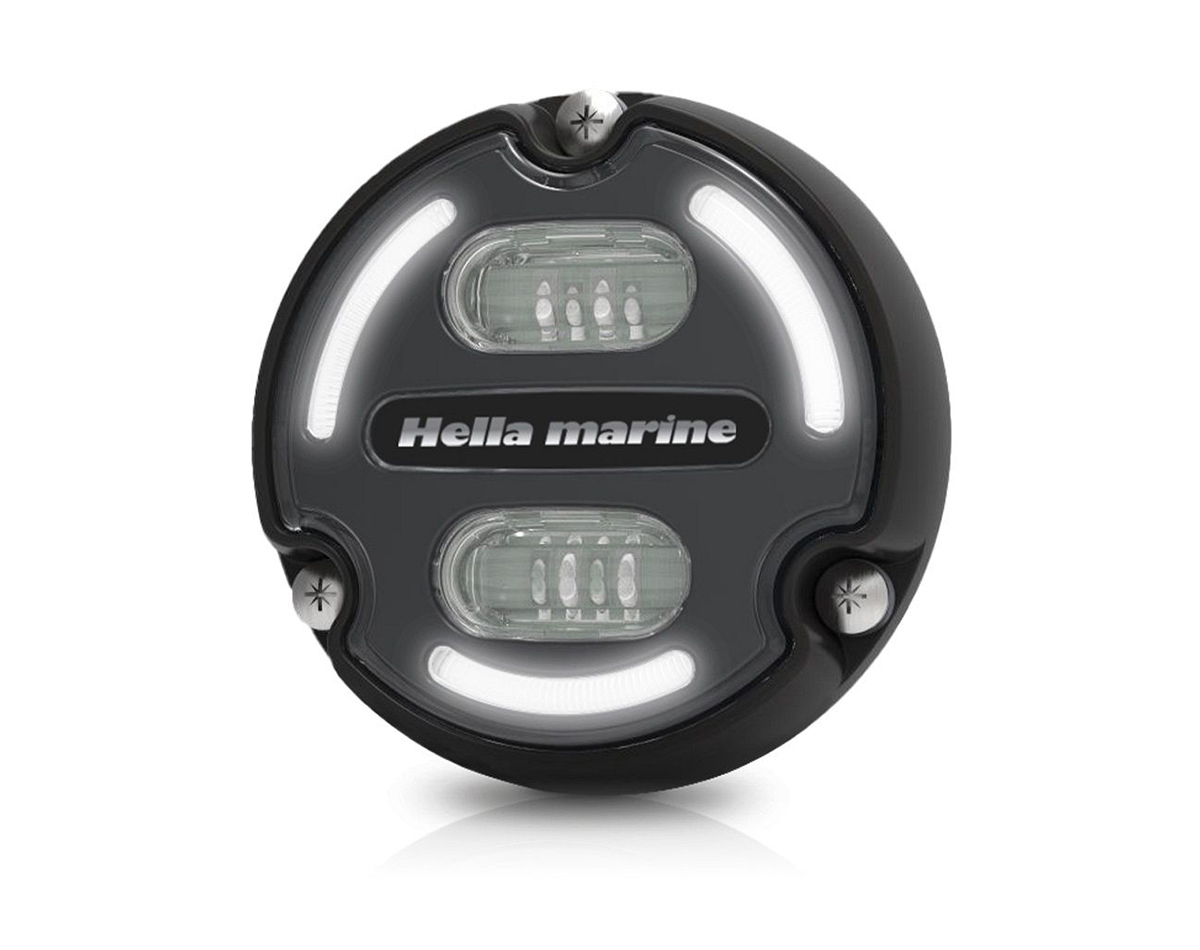

A2 Aluminium UW light with Charcoal Lens - Edge Lights

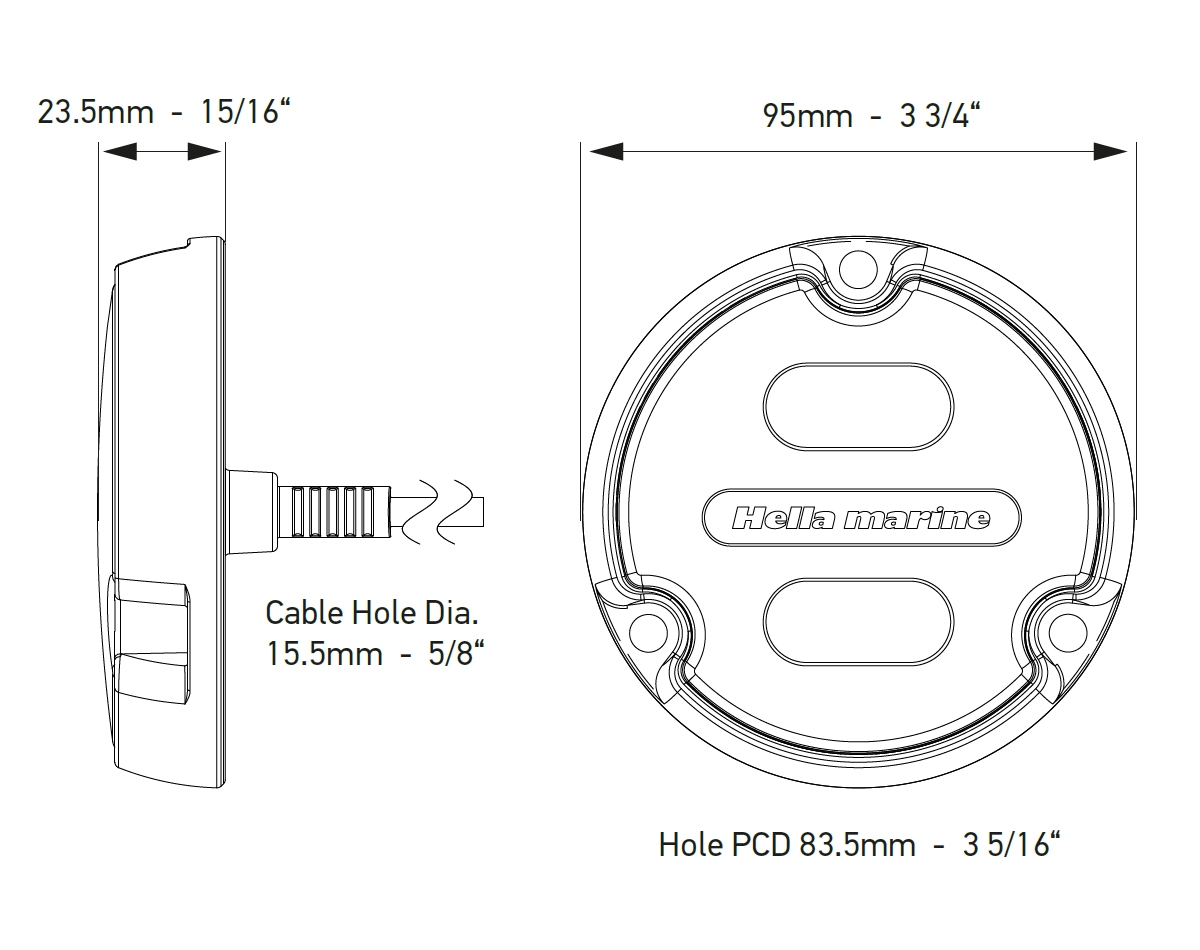

Dimensions

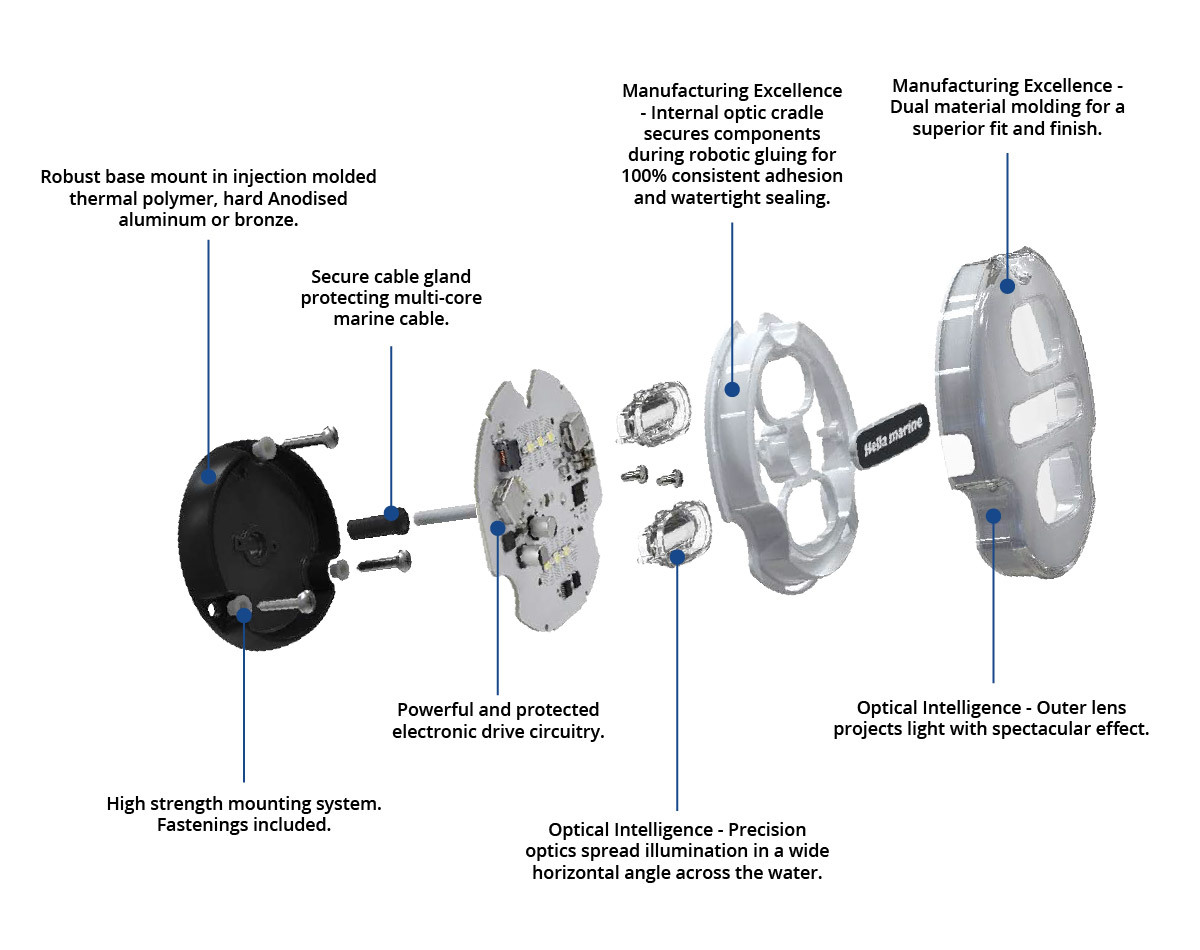

Exploded Diagram

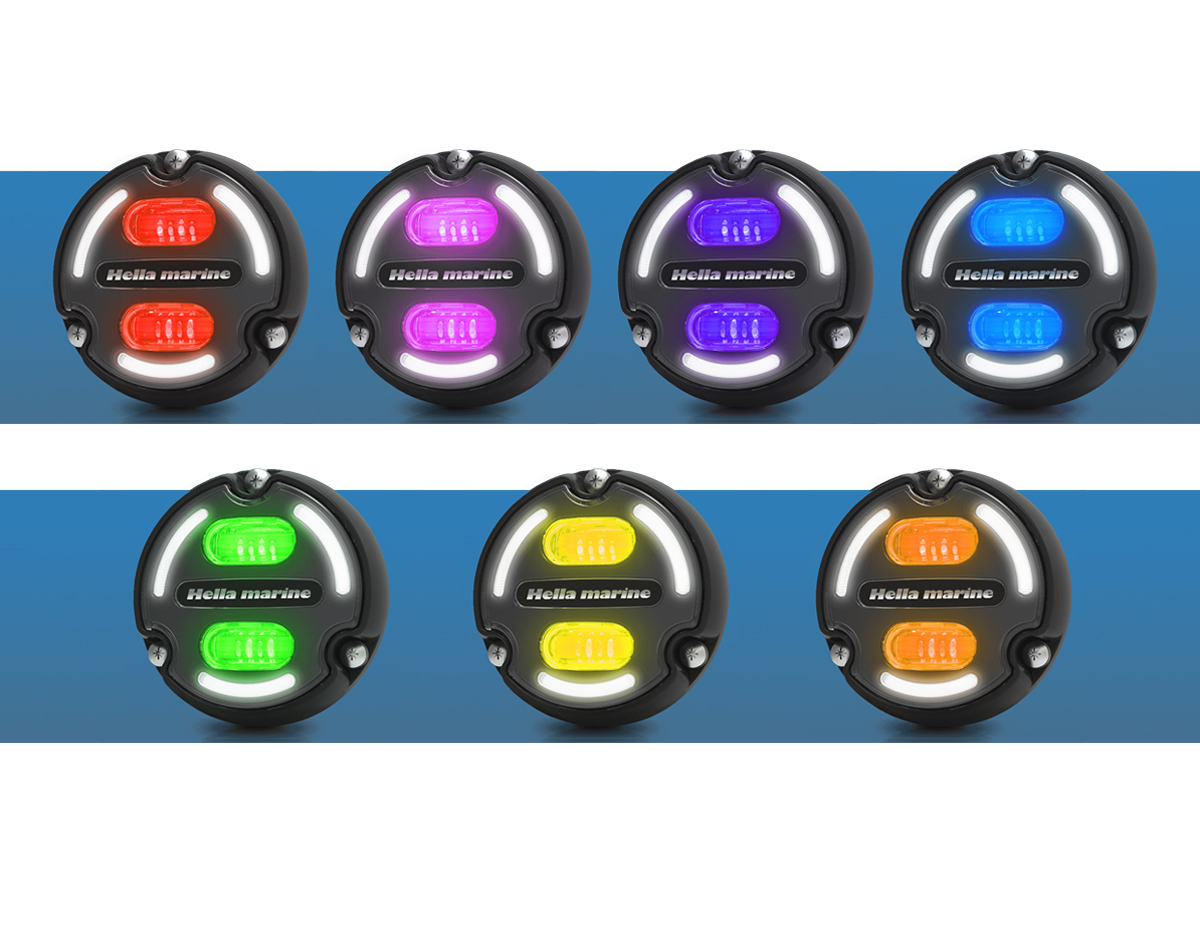

Example of Colour Spectrum
Image (Photoshopped) for Example Purposes only
Create unlimited RGB coloured underwater lighting at your fingertips with the Hella Marine Apelo A2 Aluminium Underwater Lights RGB Colour Change LED.
Featuring additional unique and elegant edge lights to illuminate your transom in a pure white light.
Pay in 4 interest-free payments of $107.69
Create unlimited RGB coloured underwater lighting at your fingertips with the Hella Marine Apelo A2 Aluminium Underwater Lights RGB Colour Change LED. Featuring additional unique and elegant edge lights to illuminate your transom in a pure white light.
The A2 lamps deliver a narrow vertical but wide horizontal angle light pattern, which focuses efficiently below the waterline and generates a higher brightness when viewed from above.
Activate the edge lights whilst launching or retrieving, while on the boat lift, during wash down, flushing engines or when loading gear for subtle illumination. The advanced edge light technology creates a bright light that is still visible in daylight, without the brilliant intensity of the underwater light mode.
The Apelo range of lights are surface mounted and manufactured from an ultra-durable, corrosion resistant hard-anodized aluminum housing, that is compatible with aluminium, fiberglass, timber and composite hulls. The tough UV-resistant Grilamid lens is also highly durable, and the whole unit is completely sealed and electronically protected.
Dry running protected, the Apelo is as happy running out of the water as in it, while using less energy to achieve equal brightness compared with rivals offering higher lumen ratings.
Under severe voltage fluctuations and low battery voltages, the advanced electronics of the Apelo range ensure reliable illumination and lamp protection. They have also been engineered to suppress potential interference with radios, chart plotters and other devices onboard.
Supported with a 5 year warranty, the Apelo range of underwater lamps redefine entertainment lighting and offer amazing illumination experiences.
Lighting Mode:
* For more information on wiring to a generic RGB controller or how to operate without a controller, see the wiring sheet under the "Resources" tab
Product Features:
| Colour Temperature: | 5000K (White) |
|---|---|
| Lens Material: | Premium grade UV Stable, Impact resistant Nylon (Grilamid) |
| Base Material: | Hard anodised corrosion resistant aluminum |
| Cable: | 2.5m 5 core tinned marine cable |
| Voltage: | Multivolt 9-32V DC |
| Voltage Protection: | Spike protected to +500 volts, Reverse polarity protected to -700 volts |
| Wattage: | RGB: 30W Edge Light: <2W |
| Power Consumption: | RGB: 2.5A @ 12V / 1.3A @ 24V Edge Light: <0.2A @ 12V / <0.1A @ 24V |
| Water Protection Rating: | IP68 / IP69: Suitable for submersion in operation and high pressure water jet cleaning |
| Weight: | 360g (including cable) |
| Installation: | Transom / Surface mount with robust mounting system (100-500mm below water line) |
| Approvals: | EN55015/ CISPR 15, IEC60533, IEC61547, ICES-5 |
