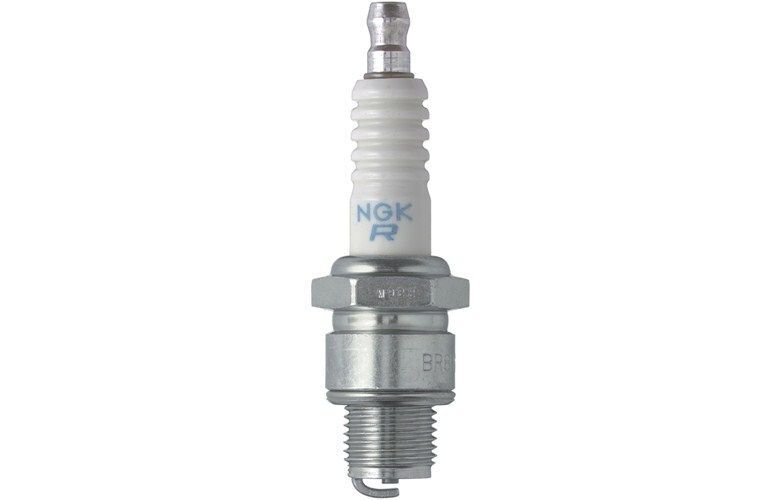

NGK's Standard Plugs are constructed for longer life and optimum performance. This plug has an inductive resistor design for use with capacitive discharge ignition systems that have a much lower voltage output.
Pay in 4 interest-free payments of $5.94
NGK's Standard Plugs are constructed for longer life and optimum performance. This plug has an inductive resistor design for use with capacitive discharge ignition systems that have a much lower voltage output.
This is achieved by utilising a coiled nickel wire inserted into the stem and held in place by a spring. The coil acts as an electromagnet, inducing a magnetic field around the center stem, creating a natural "field" resistor.
This type of resistor creates around 40ohms of physical resistance, compared to the 1000-5000ohms of resistance in typical monolithic resistor plugs.
This spark plug features trivalent metal plating for superior anti-corrosion and anti-seizing properties, as well as corrugated ribs to prevent flashover.
It also includes a pure alumina silicate ceramic insulator to provide superior strength and better heat transfer. Additionally, a copper core aids in heat removal and a triple seal prevents leakage.
Product Features:
| Shell | Specifications | Center Electrode | Ground Electrode |
|---|---|---|---|
| Thread Size: 14mm | Heat Range: 7 | Type: Standard | Type: Standard |
| Hex Size: 13/16" (21mm) | Brand: NGK | Material: Nickel | Material: Nickel |
| Reach: 12.7mm (1/2") | Longevity: 30k | Size: 2.5mm | Quantity: 1 |
| Seat Type: Gasket | Projection: Non-Projected | ||
| Gap: .040" (1.0mm) | |||
| Terminal Type: Solid | |||
| Resistor: Yes | |||
| Overall Height: ISO | |||
| Thread Pitch: 1.25mm | |||
| Resistor Value: Inductive |
Replacement Spark Plugs
To correctly identify the spark plug part number you need, visit the NGK website and at the top right hand corner click “PART FINDER” and follow the steps.
https://www.ngk.com.au/products/spark-plugs/
Once you know the NGK part number you can search for this number on our website (or call us) to see if it is a part we stock.
