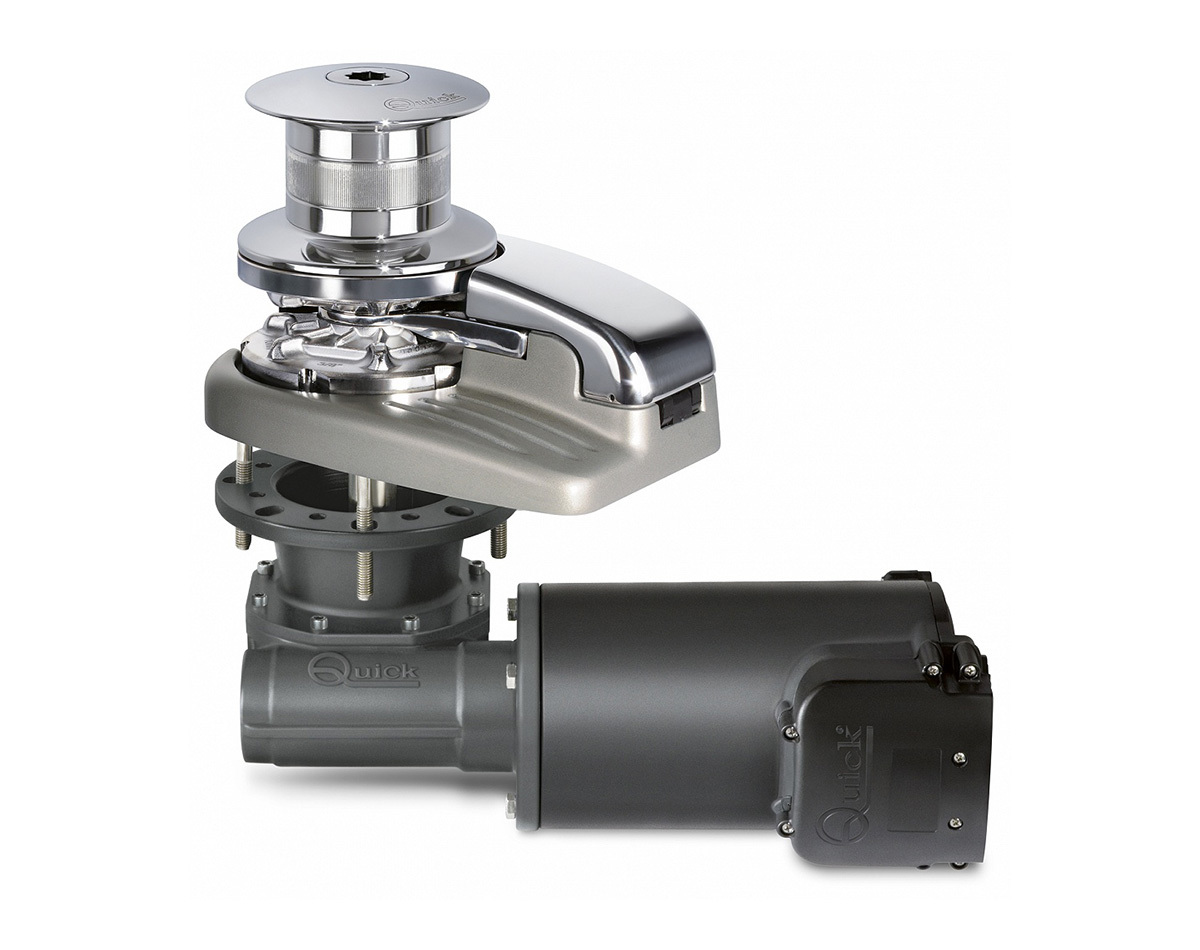

Quick Dylan Series DH4 Vertical Windlass 2000W

Suitable for boats from 15m - 20m (49-66ft).

The Quick Dylan DH4 is a vertical application windlass, perfect for boats with limited deck space, with its motor and gearbox installed inside your vessel's anchor well/storage locker.

The DH4 is available with or without drum capstan for rope retrieval. It is equipped with an emergency manual lift system so you can conveniently retrieve your anchor during instances when you may lose batter power on your boat.

The gypsy supplied with the DH4 can support anchor rode with both calibrated short link chain and spliced 3-strand rope. This is due to the special notching fitted internally, which allows the rope to slide easily.

Designed and manufactured in Italy, the Dylan series winches are composed of AISI 316-grade stainless steel with a watertight motor, anodized aluminium gearbox, and an easy-open inspection lid, making it a state-of-the-art vertical anchor winch.

Sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.

Product Features:

Vertical windlass
24V
Base made of AISI 316-grade stainless steel and anodised aluminium in hard oxide

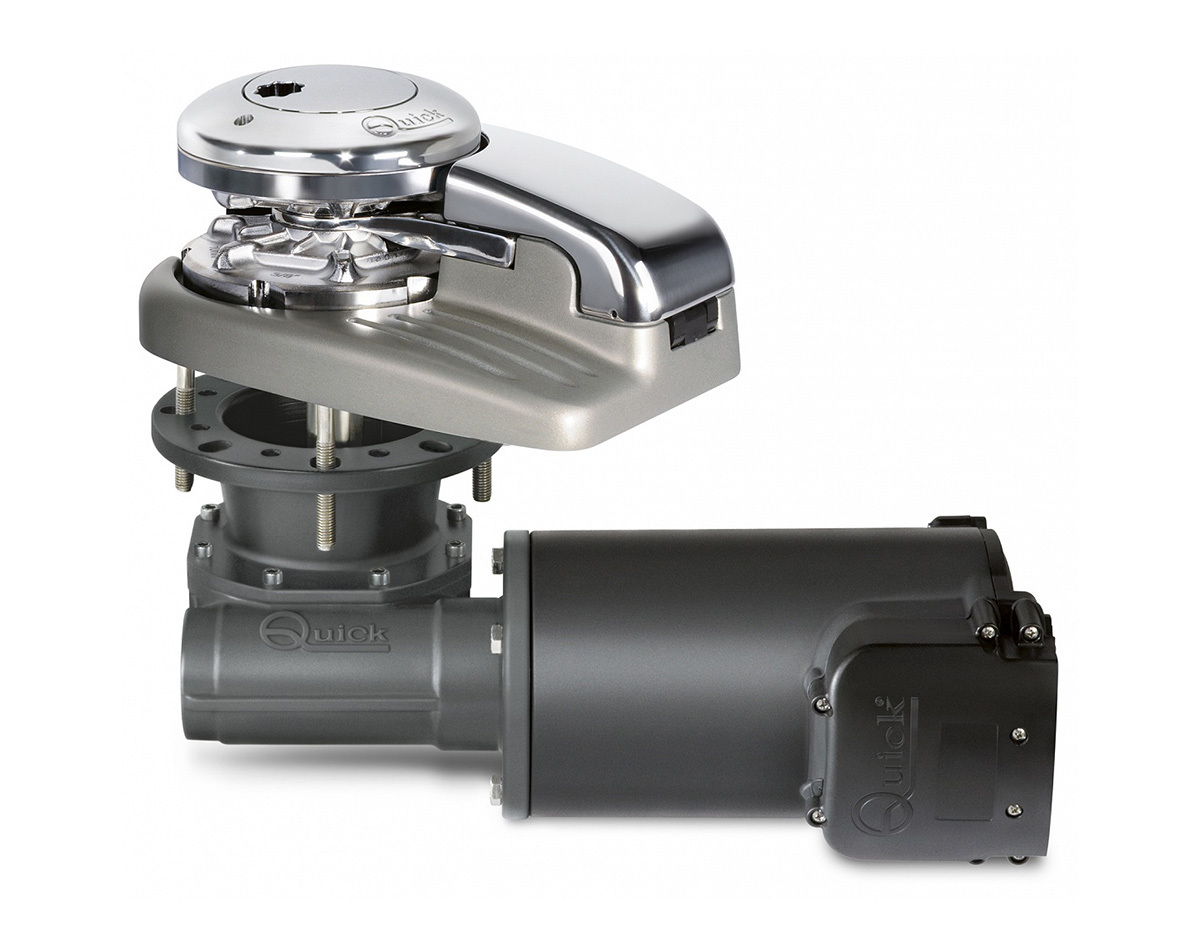

Available with or without a gypsy drum capstan for rope retrieval
Rope and chain on a single gypsy
Manual free-fall system
Flexible motor and gearbox installation
Openable inspection lid
Supplied with pressure lever and inspection lid
Supplied with integrated chain sensor counter
Watertight motor (IP66 rated)
Anodised aluminium gearbox
Rope and chain sold separately

Included in the package:

Windlass (on deck unit + motor and gearbox)
Clutch release and manual lift handle
Reversing contactor unit
Base gasket
Drill template
Bolts & screws (for assembly)
User manual & conditions of warranty (3 year warranty from date of sale)

Accessories (not included) - must be purchased separately:

Other motor power options available:

Quick Dylan Series DH4 Vertical Windlass 1700W

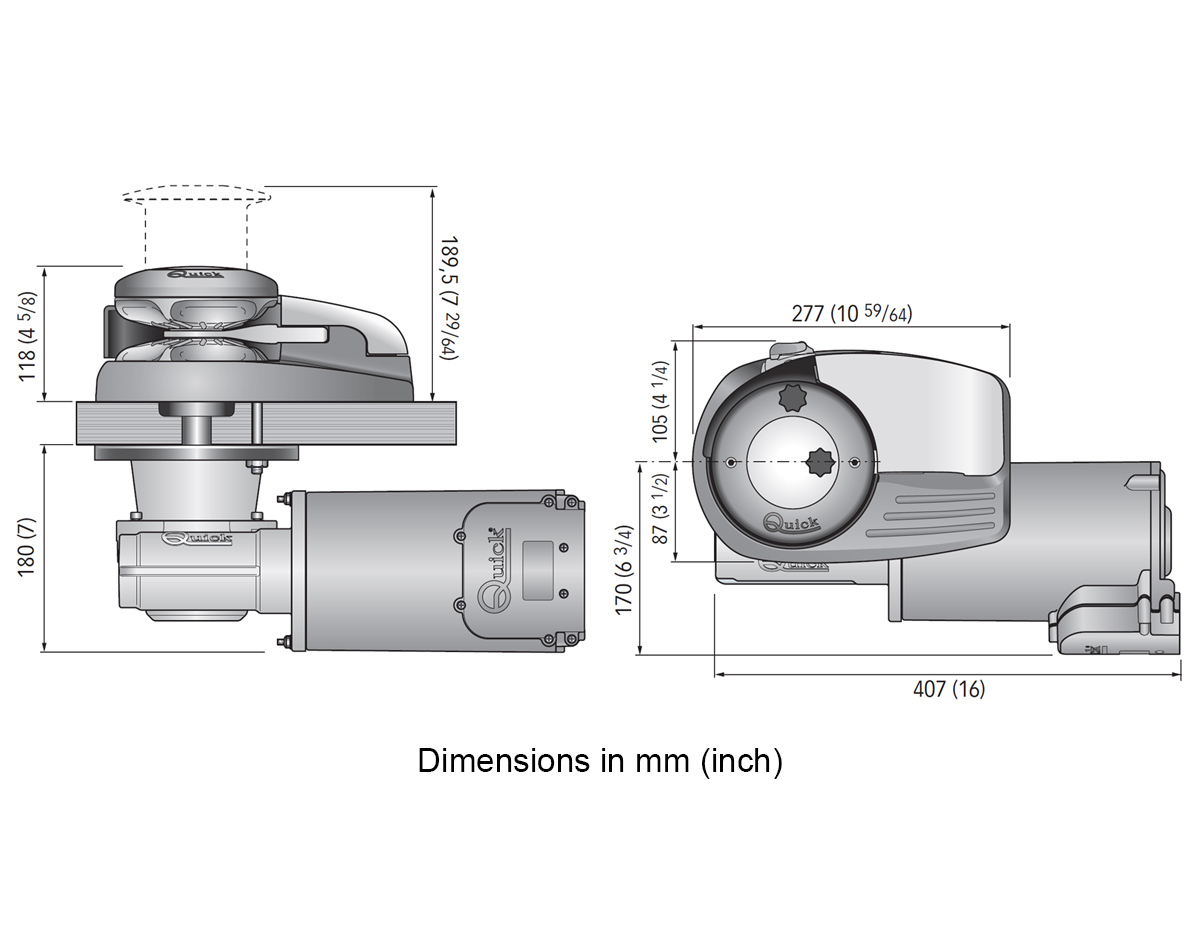

Model	Dylan DH4
Watts	2000W	1700W
Voltage	24V	12V	24V
Amps	105A	170A	95A
Chain Gypsy Size	13mm	10mm
Rope Size	12.7mm	12.7mm
Max. Pull	1600kg	1150kg	1200kg
Max. Working Load	750kg	470kg	570kg
Working Load	250kg	155kg	190kg
Max. Chain Speed	35.0m/min	33.5m/min	39.0m/min
Chain speed @ working load	22.3m/min	16.2m/min	20.8m/min
Weight (without drum)	30.7kg	25.1kg

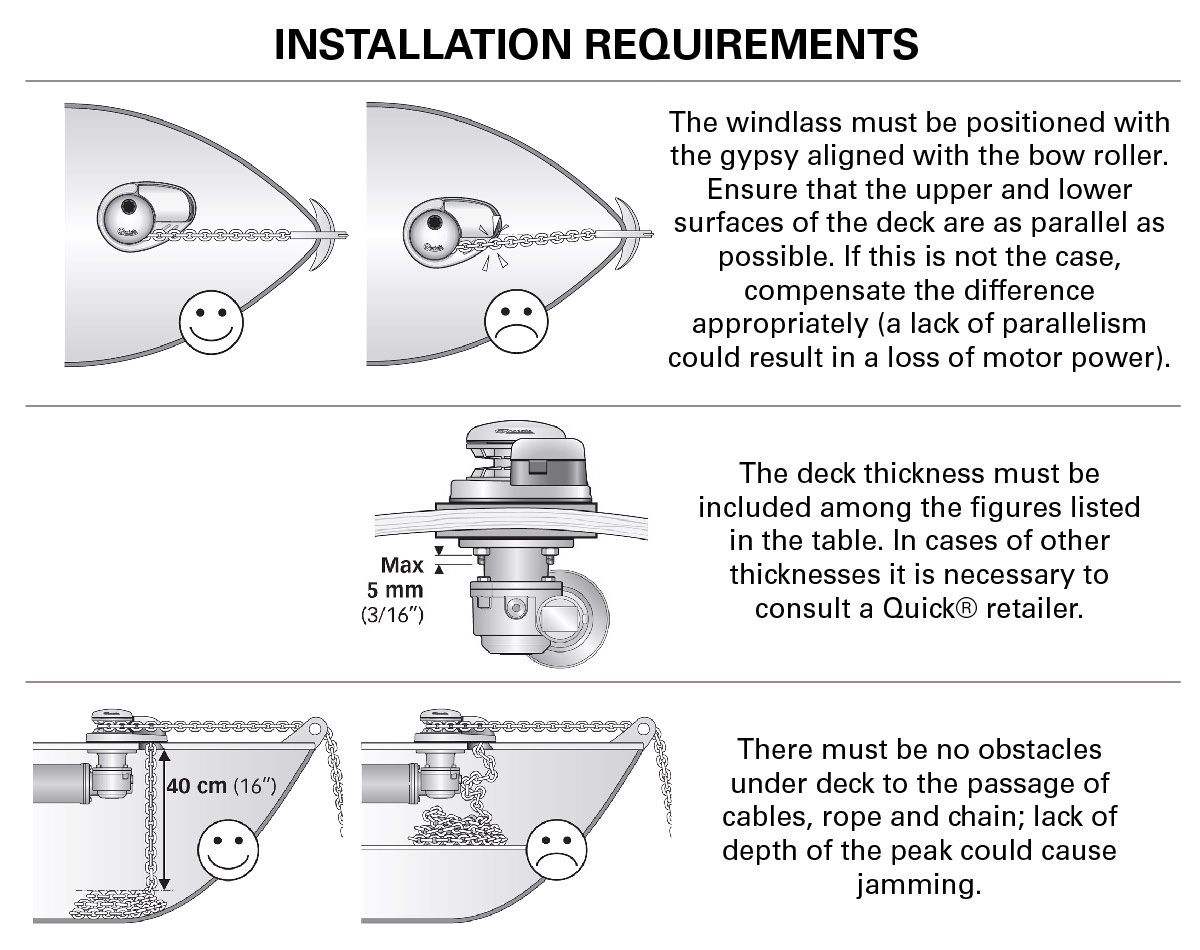

Deck Thickness	30 - 70mm	30 - 70mm
Suggested Boat Size	15 - 20m	14 - 18m

Why choose a Quick Anchor Winch?

Quick windlasses are equipped (as standard) with exclusive solutions and devices to ensure safety and functionality in all conditions. Each component has been designed in the company’s Italian engineering laboratories. The wide range of equipment for all kinds of mechanical processing enables Quick to obtain high-quality and directly-controlled products.

Do I need a drum capstan for rope retrieval?

The drum is an additional tool which some sailors use for other tasks like hauling rope for sails, dinghies, or craypots (for example). Quick’s vertical winches do not need a drum to haul the anchor up or down because the gypsy does that. Therefore, unless you have a specific use for a drum (like the previous examples), you probably do not need one.

How do I calculate what motor power I need?

Please see the table above for the factors to consider when selecting which motor power would best suit your vessel, anchor and anchor rode combination.

Manual Free-Fall Device:

This allows the manual release of the gypsy clutch, resulting in the chain falling faster.

Flexible motor and gearbox installation:

Vertical windlasses have been specially designed with installation flexibility in mind. The flange allows for the gearbox to be installed in any direction without hindering the fall of the chain into the anchor well/storage locker.

Protection from Water:

The motor includes a flexible PVC gasket which should be installed on the flange of the below-deck gearbox. This gasket is well suited to any surface and effectively protects the gearbox against water infiltration without further intervention being required.

The casing is made of composite material, with gaskets and sealed cable outlets for electric cables. As well as preventing infiltration of water or other liquids, it also delivers high impact resistance and ease of installation.

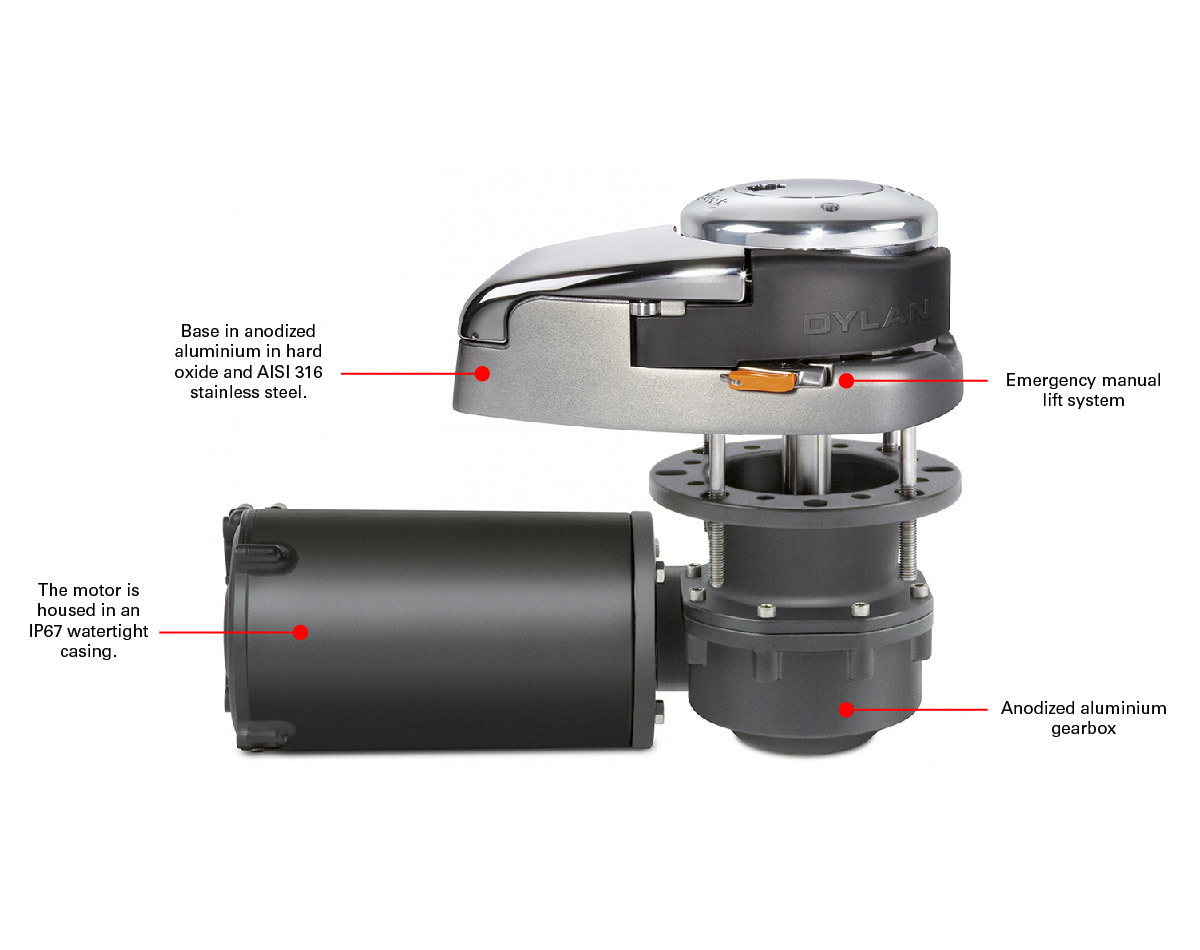

Metals used in the Base:

AISI 316-grade stainless steel:
- The main material used in most of the winches and windlasses manufactured by Quick and is best suited for the harsh marine environment. Stainless steel has been used for the gypsy and other external parts using sheet metal moulding.
Anodized aluminium in hard oxide:
- This has been used for the base due to its strength and resistance combined with light weight. The hard oxide used by Quick is approximately 50 microns thick, compared to standard thickness of just 20 microns.
