Sherpa Grunter Boat Trailer Winch

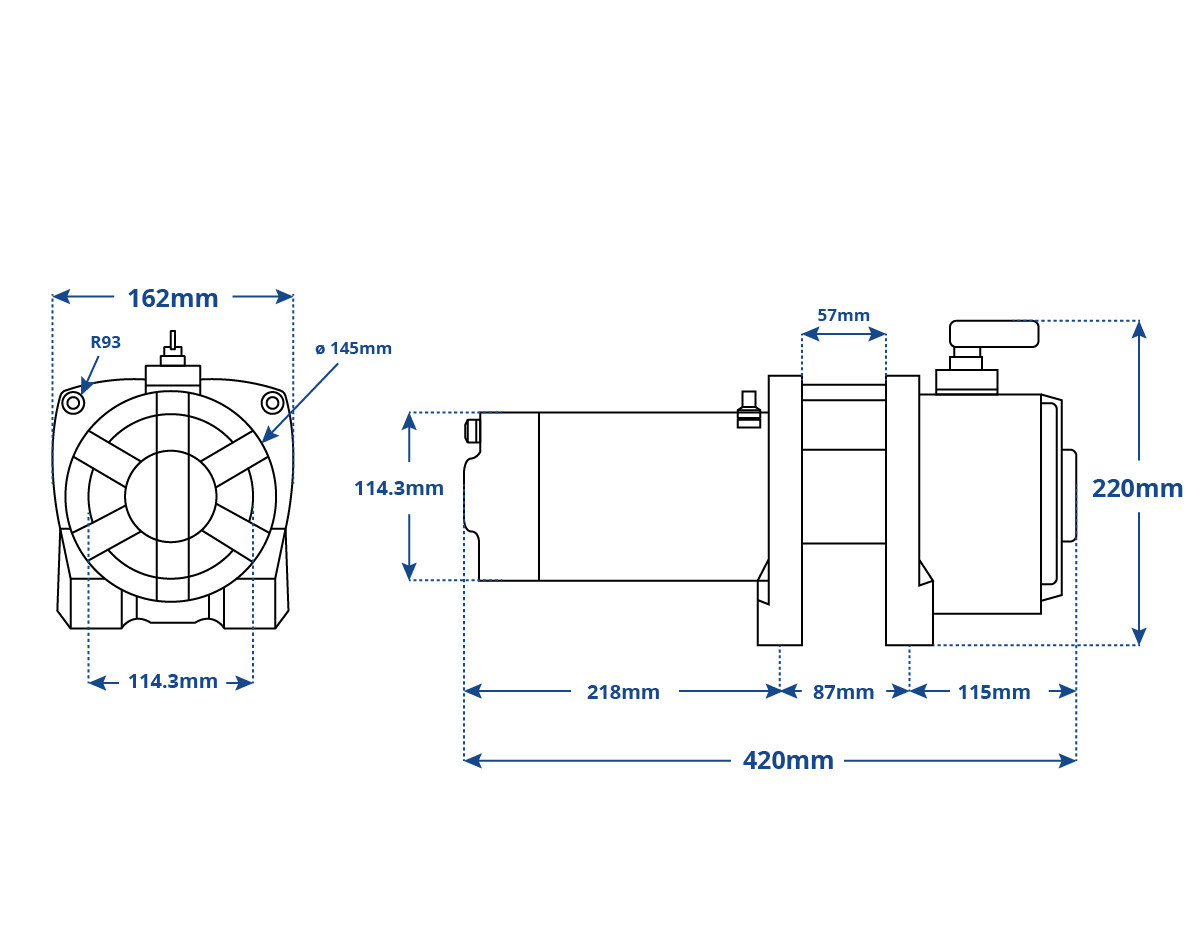

Dimensions
Included accessories & hardware

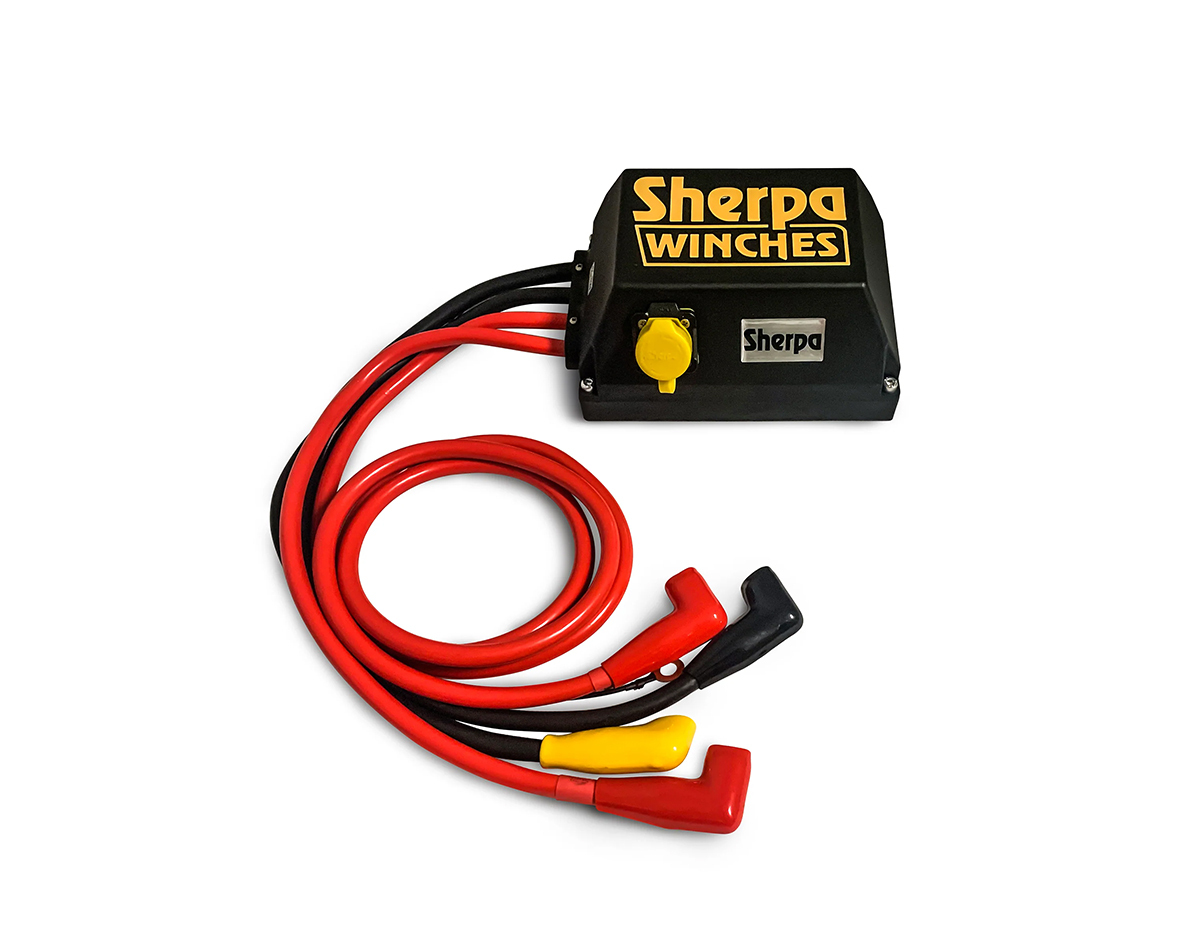

Control solenoid box

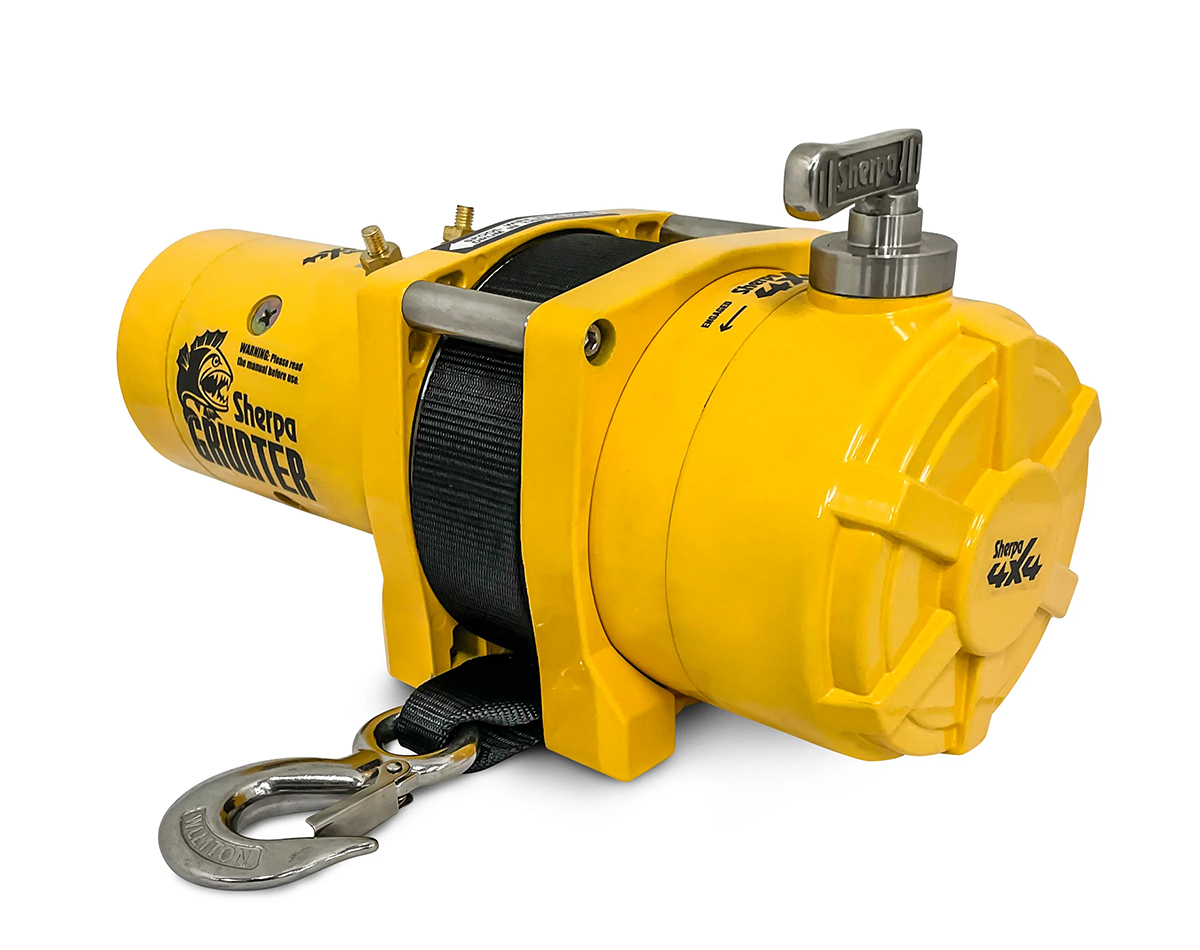

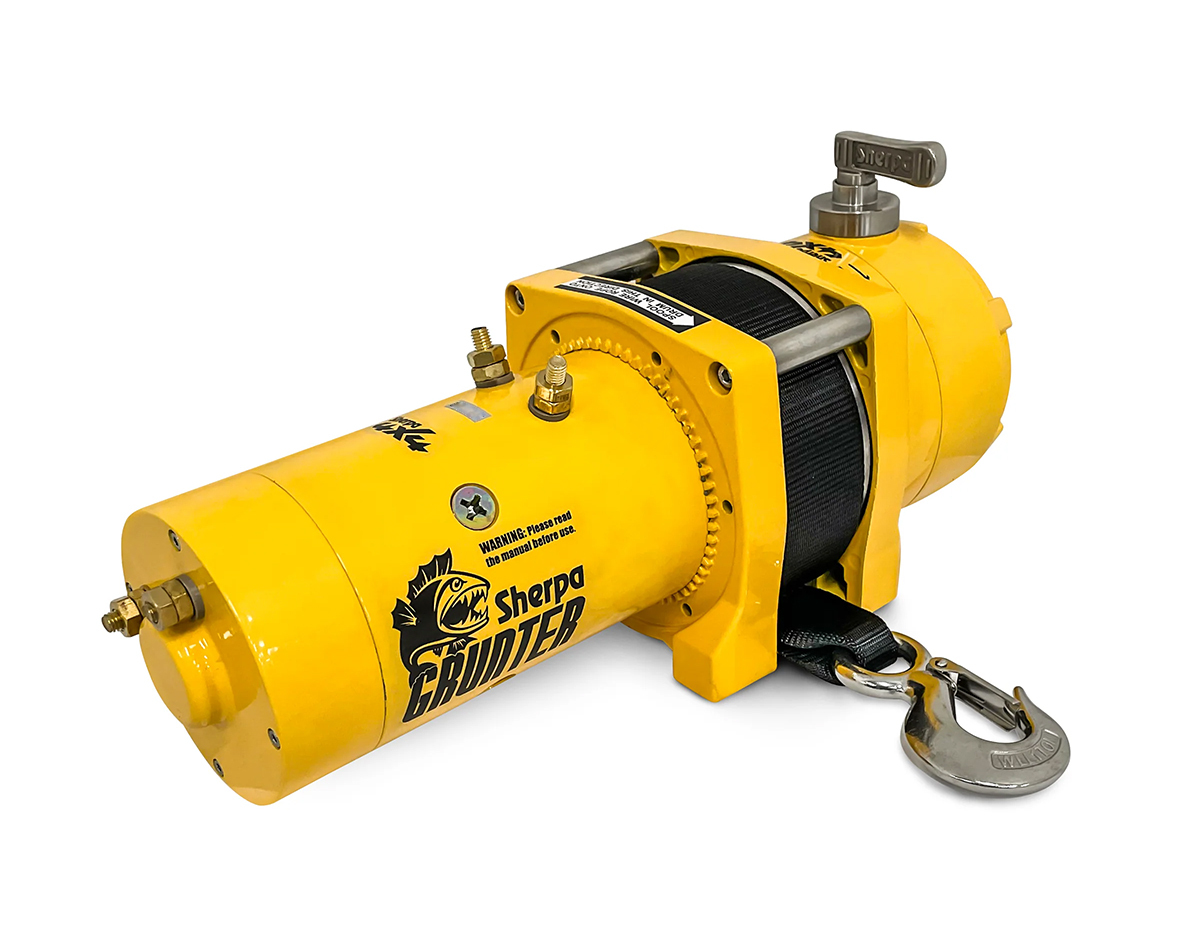

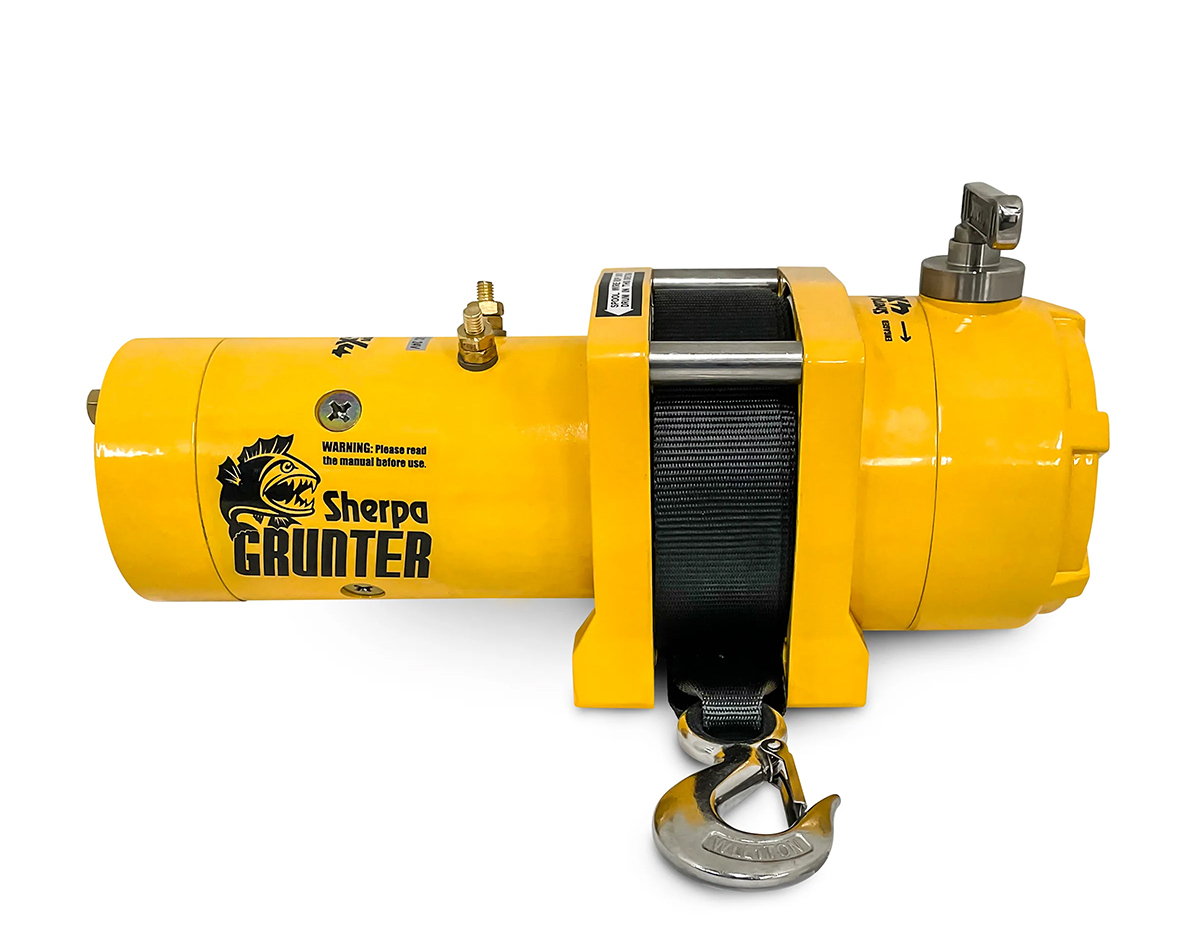

Sherpa Grunter Boat Trailer Winch
Sherpa Grunter Boat Trailer Winch
This high quality & powerful trailer winch has been custom designed and built for one operation: winching boats or vehicles onto trailers.
Standard model for boats up to 5,500kg.
Pay in 4 interest-free payments of $374.75
This high quality & powerful trailer winch has been custom designed and built for one operation: winching boats or vehicles onto trailers. This standard model will retrieve boats weighing up to 5,500 kg on a 45 degree inclined ramp without having to double line pull.
Not only is it fast and strong, it has a large oversized motor that uses less effort to operate, and therefore runs cooler and as a result lasts longer than other cheaper winches. Completely dust tight and waterproof, the aluminium body makes it lighter and resistance to corrosion without sacrificing strength.
The strong and fully controlled brake design within the motor is electric, meaning the brake is released when you 'winch in' or 'winch out', however it will activate as soon as you release the button. The 3 stage planetary gearbox features high quality cut gears and the selected ratio is a good balance between speed, pulling power and balancing amperage draw. Through a high amperage plug, the wiring kit provides good power supply from your vehicles engine bay to the rear of your vehicle, and into your winch.
This winch is different to anything else on the market and will outperform the competition! Designed to rival others, the Sherpa Grunter winch delivers similar high performance from a compact, safe and low maintenance design.

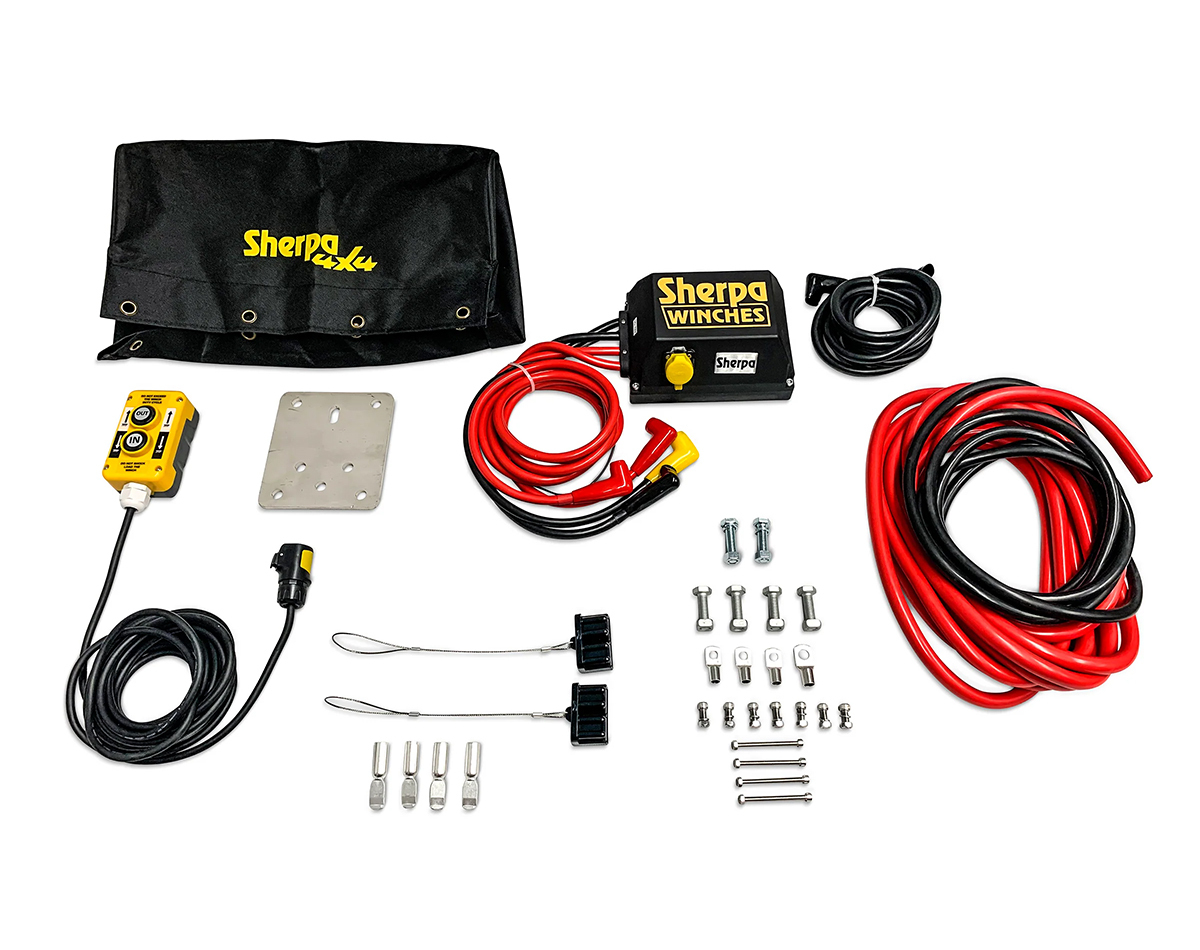

Supplied complete with wiring harness, waterproof wired hand remote, 50mm x 10m webbing strap, control box, hardware and brackets.
Product Features:
Please see the Sherpa Winch Troubleshooting Guide under the "Resources" tab.
| Rating: | Boats weighing up to 5,500 kg |
|---|---|
| Vertical Lift Capacity: | 4,545 kg (10,000lb) |
| Motor: | 6.6hp series wound (12V) |
| Gears: | Power In, Power Out and free spool |
| Gear reduction ratio: | 3 stage planetary gearbox |
| Rope/Cable: | 10m of heavy duty 50mm webbing strap rated to 11,000lb |
| Mounting Bolt Diameter: | 11.2mm |
| Drum Size (Dia x Length): | 64mm x 50mm |
| Mounting Bolt Pattern: | 87mm x 114.3mm |
| Weight: | ~25kg |
| Clutch: | 180 degree turn, free spooling, slide ring gear |
| Brake: | Electric in motor |
| Solenoid: | Albright International Heavy Duty 800 amp mounted in control box |
| Duty Cycle: | Intermittent |
| Includes: | • Ample electrical cable to run from engine bay to tow bar. • Heavy duty plug set from vehicle to trailer • Control Box • Waterproof wired hand remote • Winch and control box mounting hardware and brackets |
| Water Ingress Rating: | IP68 |
| Warranty: | 5 Years |
